The Hydrema 922G series is a versatile and reliable range of dumpers that offer solutions for a wide range of earthmoving applications. Whichever model you choose, you can expect powerful performance powered by Cummins engines, advanced safety features, user-friendly cabs and the ability to customise the machine for specific applications. The Hydrema 922G series is built to deliver reliability, efficiency and versatility for earthmoving projects.

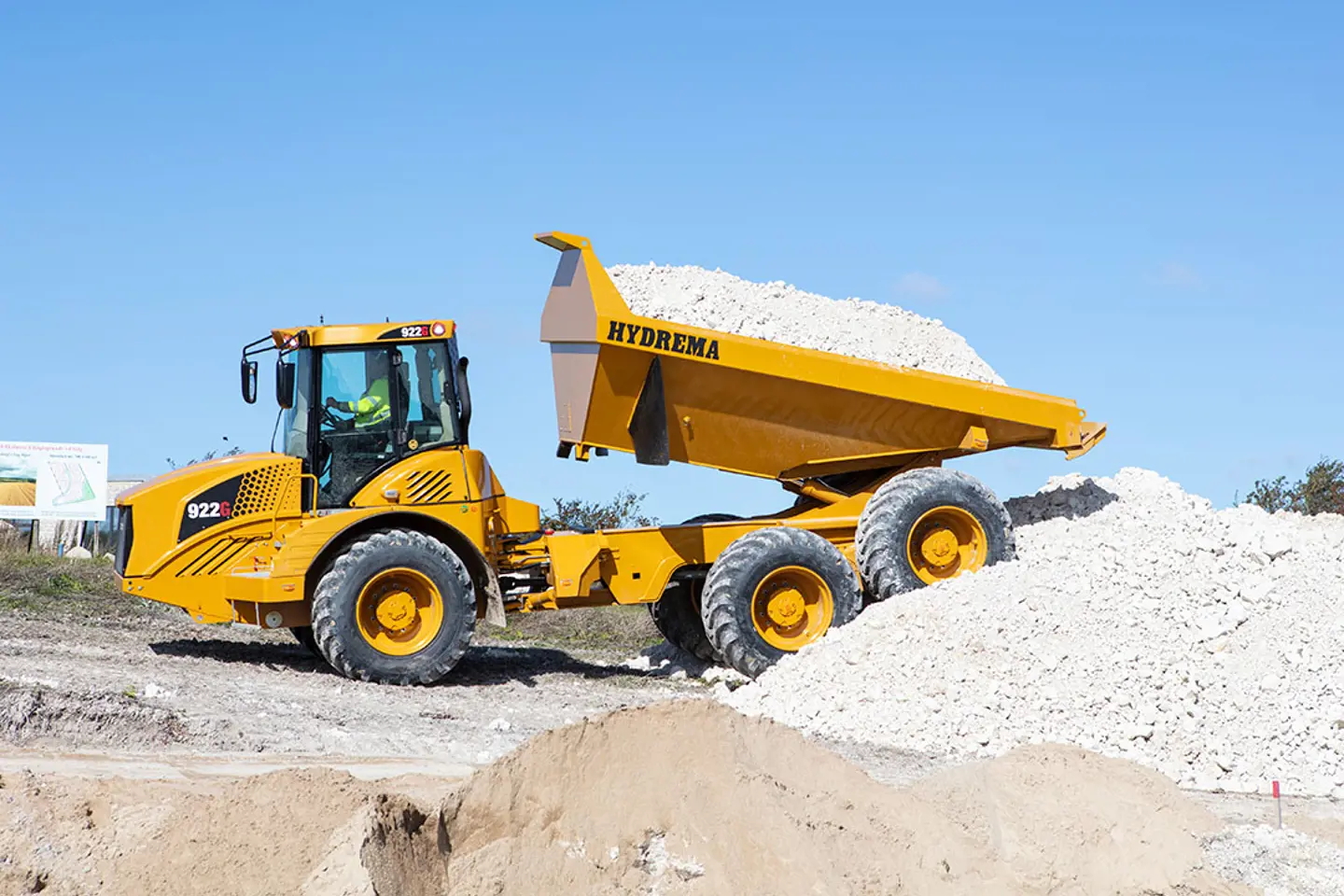

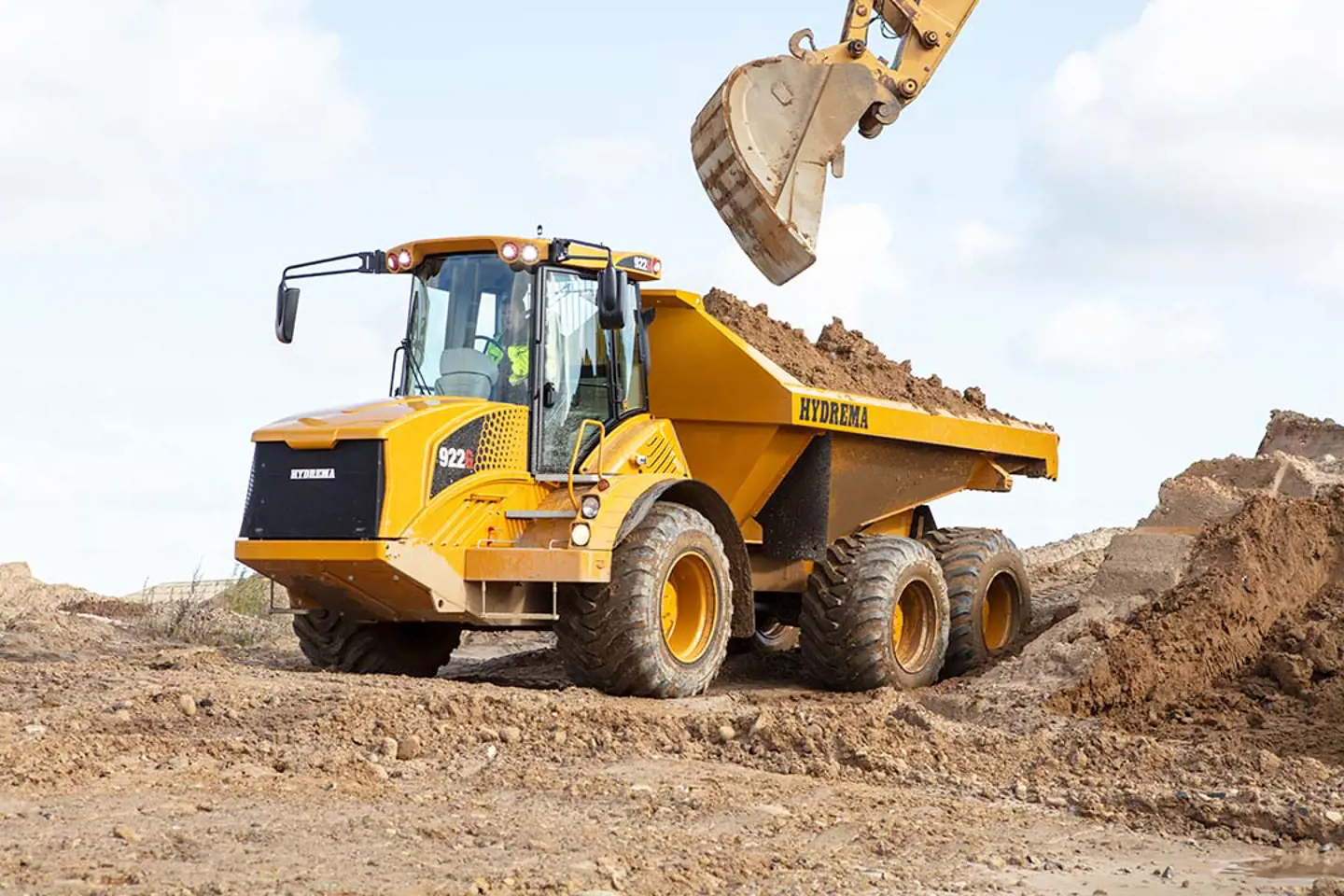

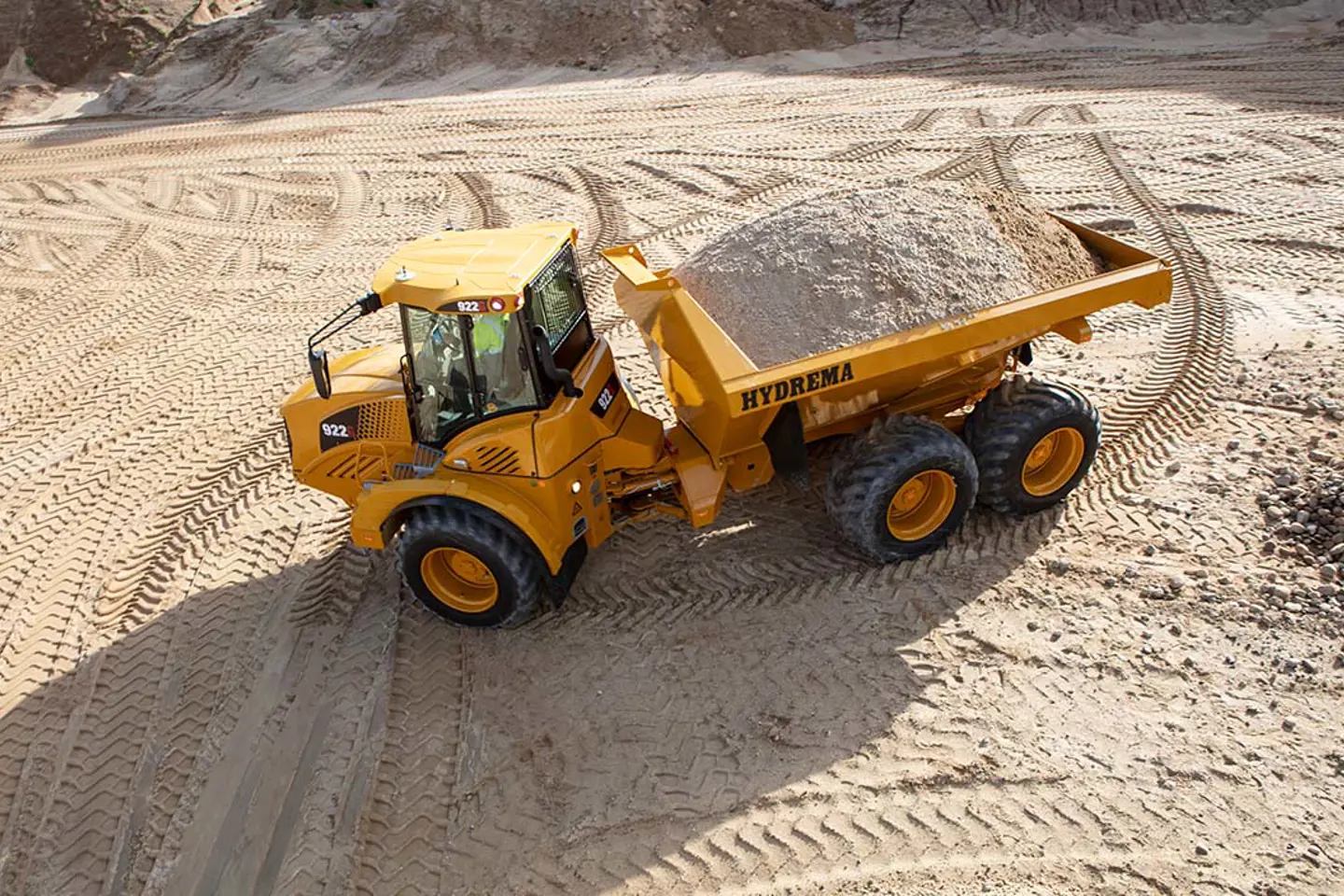

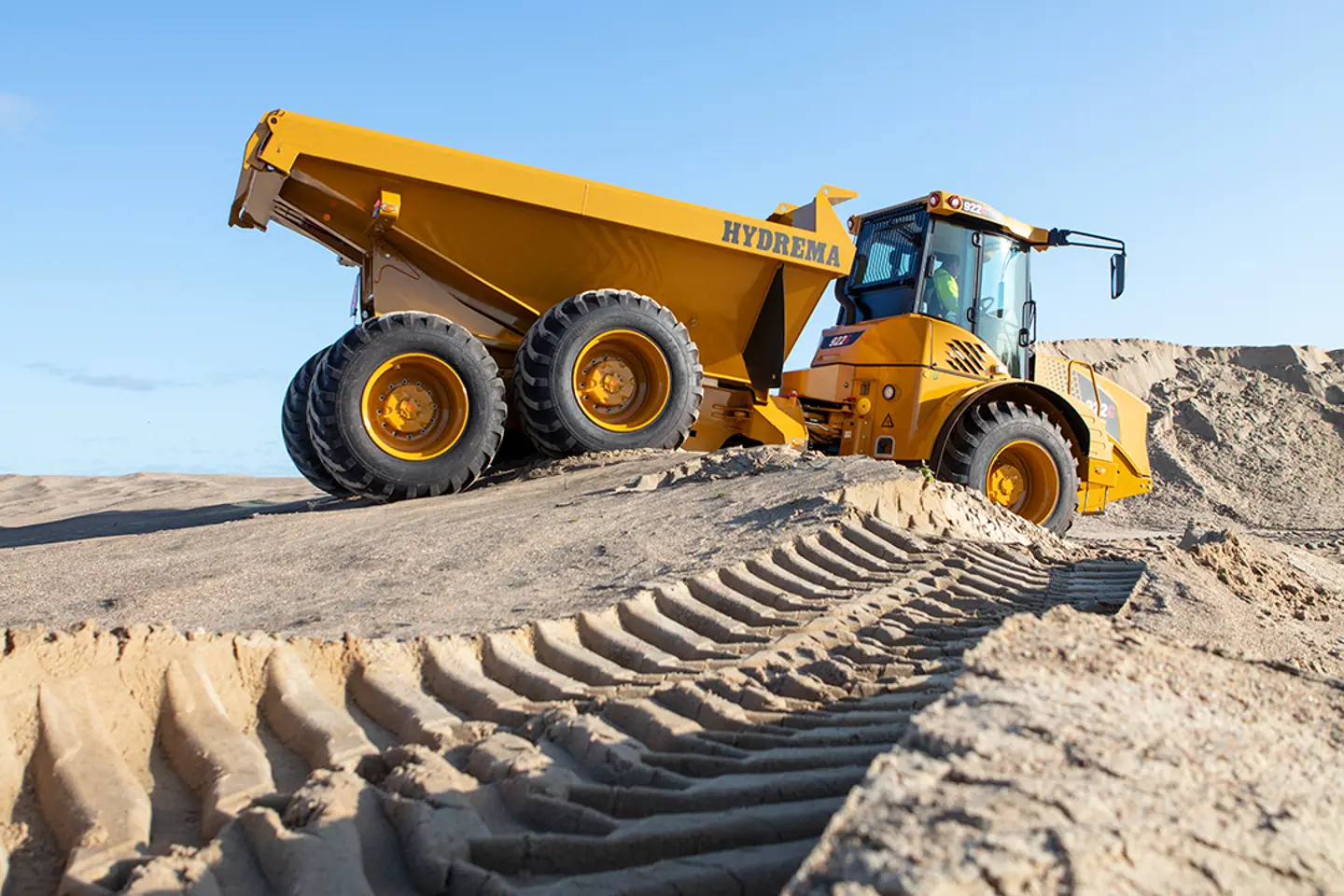

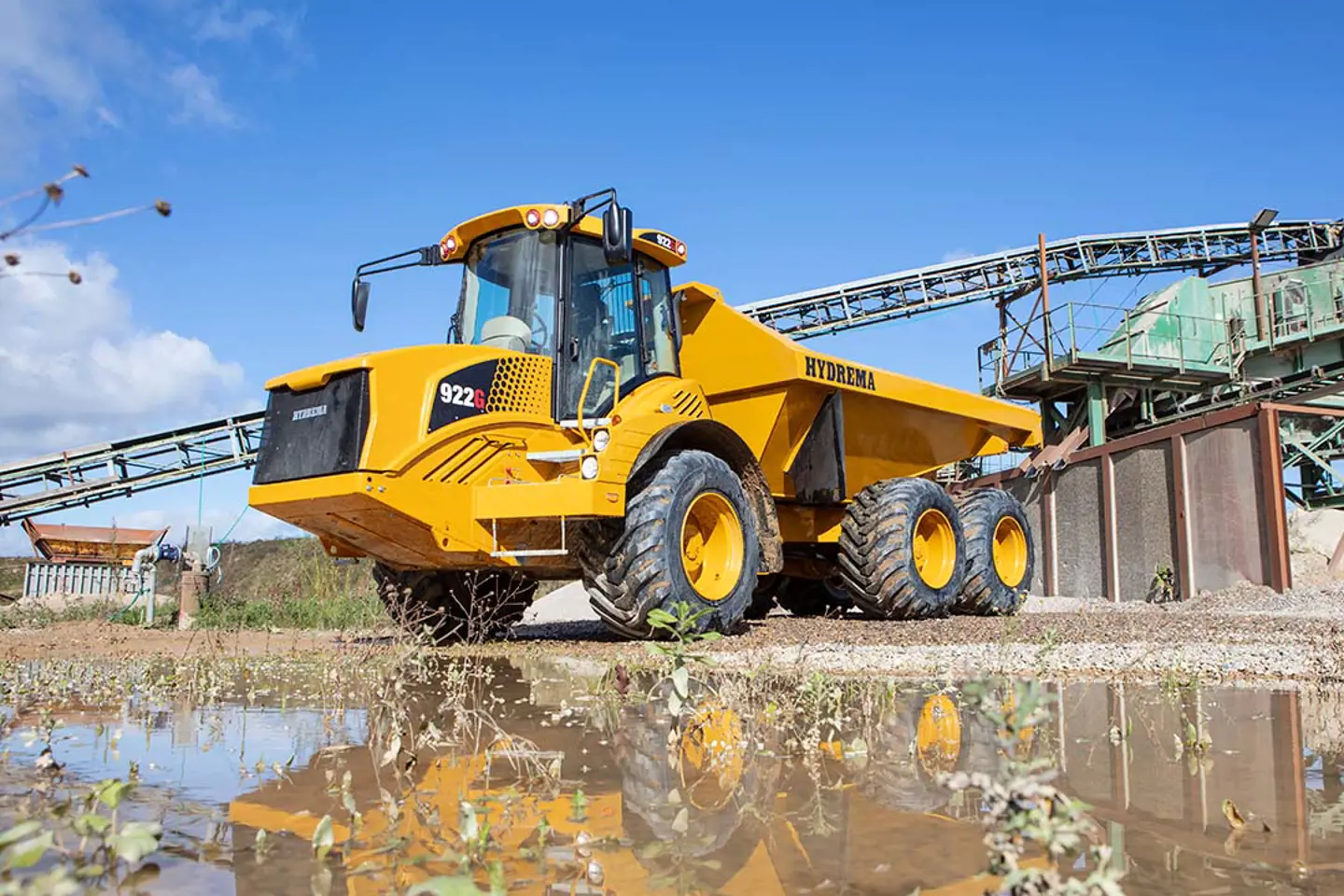

Features 922G

• 20 tonnes load capacity
• Articulated and with three axels
• Cummins B6.7 Stage V with 314 hp
• Hydraulic stabilisers, bogie axles & high ground clearance
• Low ground pressure
• Best power-to-weight ratio on the market
• High quality and longevity make it suitable for rental

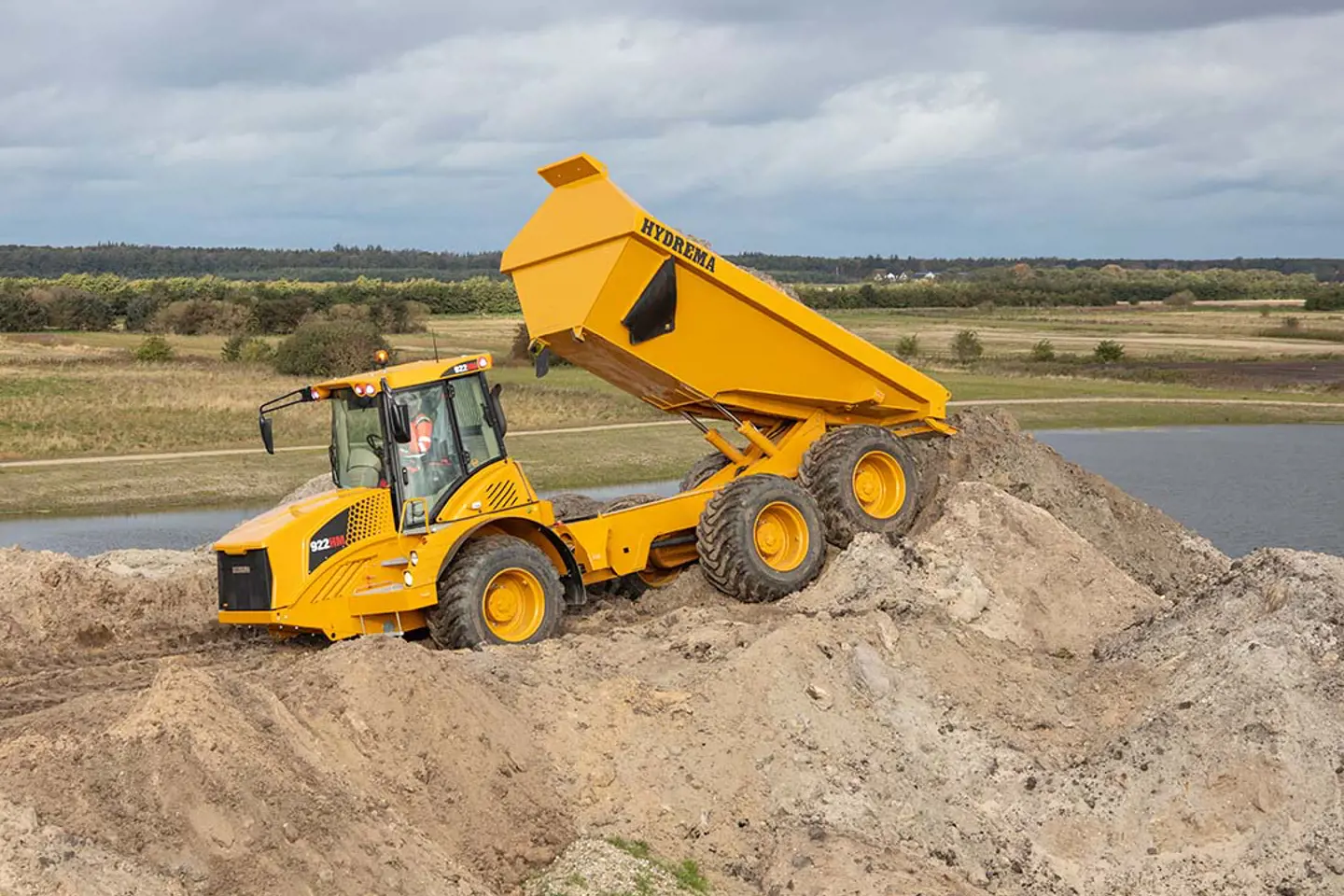

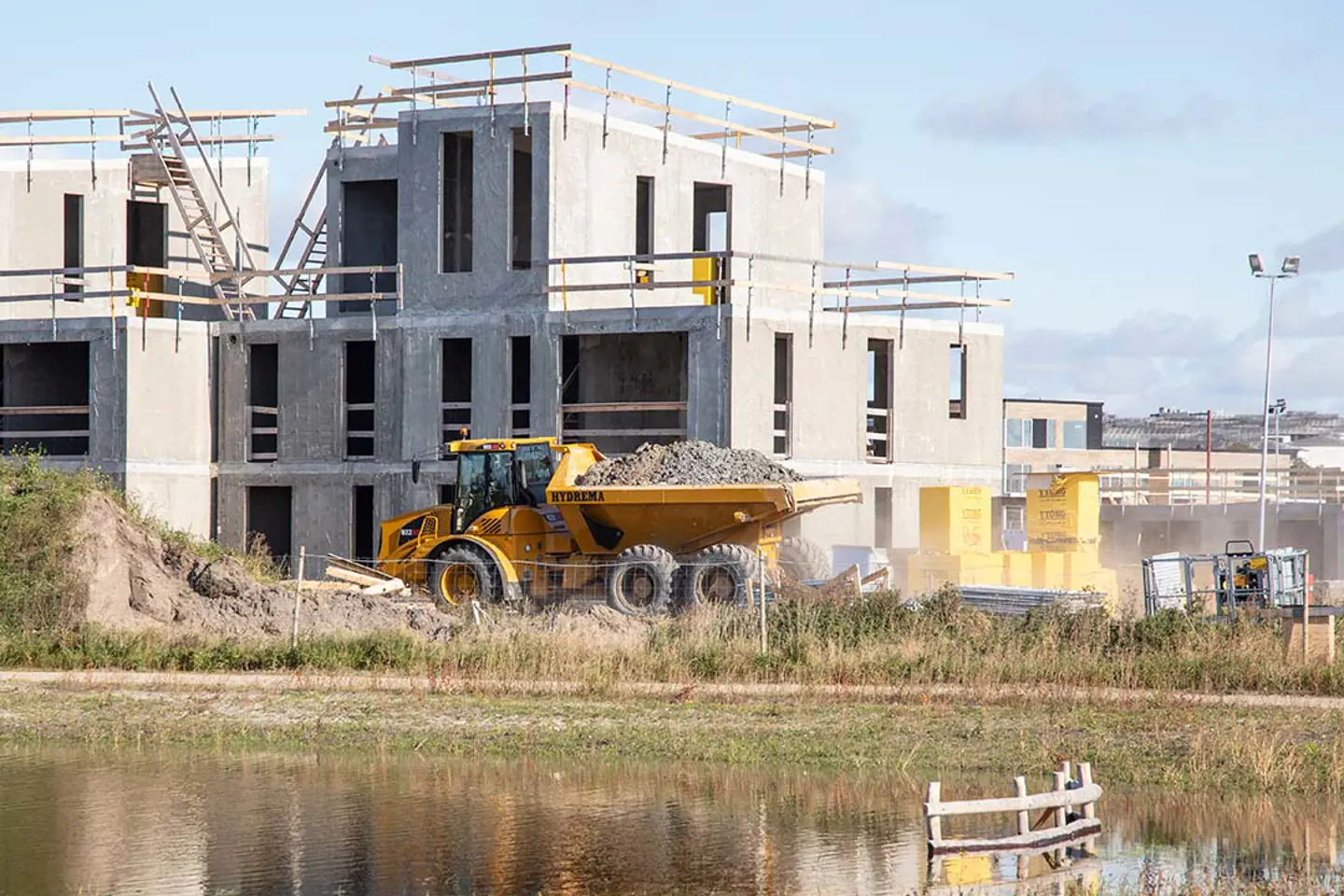

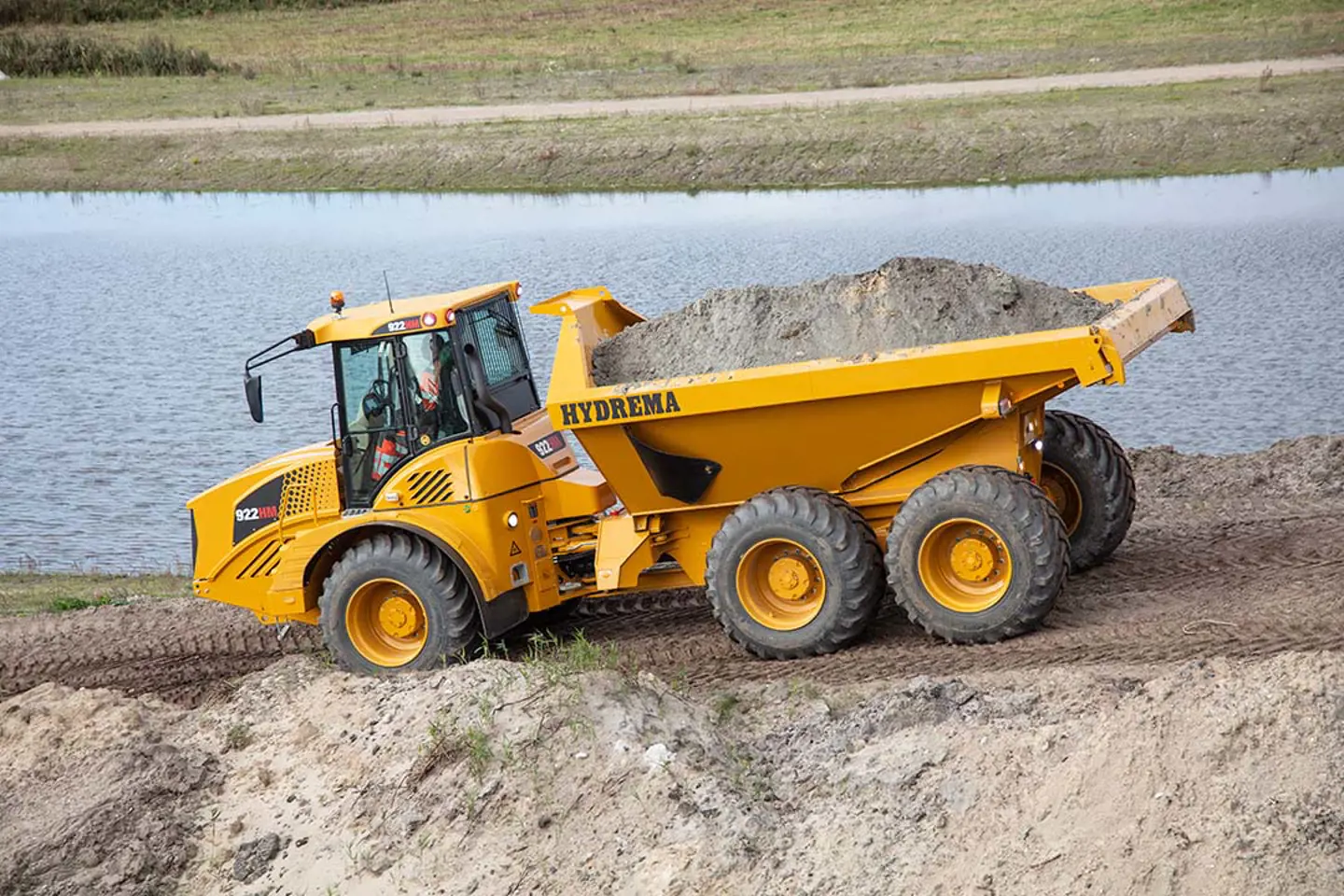

Features 922HM

• 20 tonnes load capacity
• Exceptionally low ground pressure
• Three axles & articulated steering
• Cummins B6.7 Stage V with 314 hp
• Hydraulic stabilisers, bogie axles & high ground clearance
• Excellent visibility from the cab
• High quality and longevity make it suitable for rental

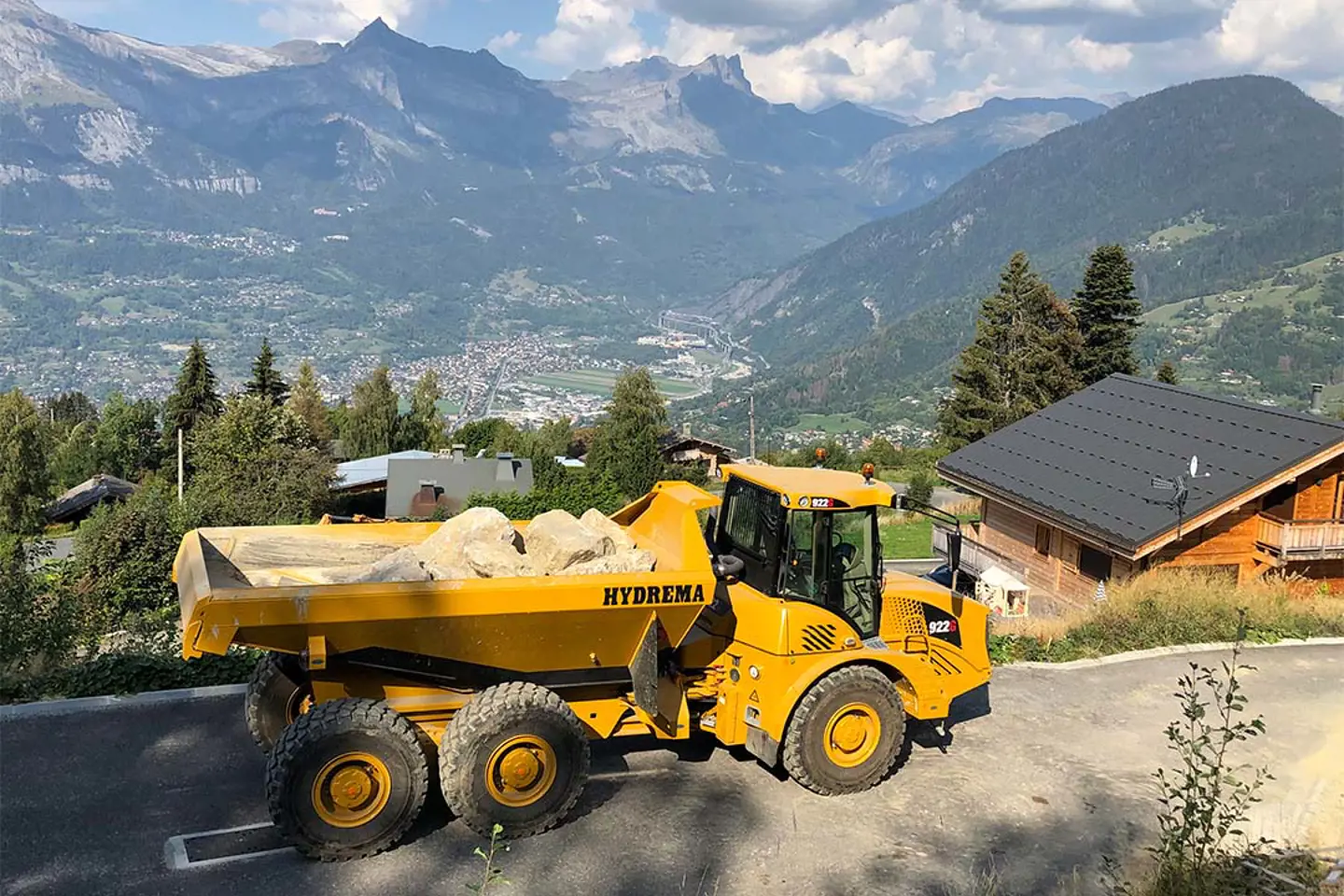

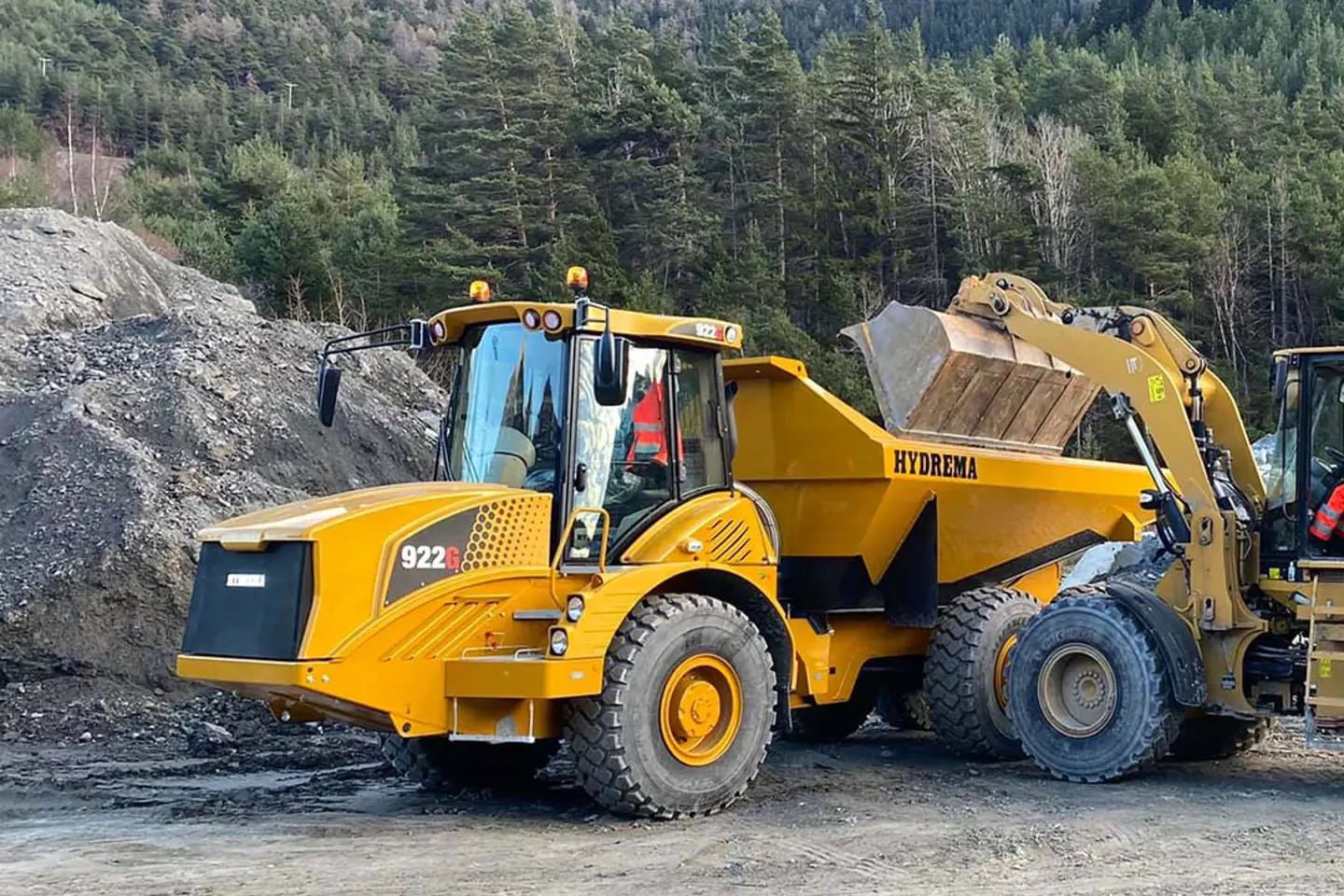

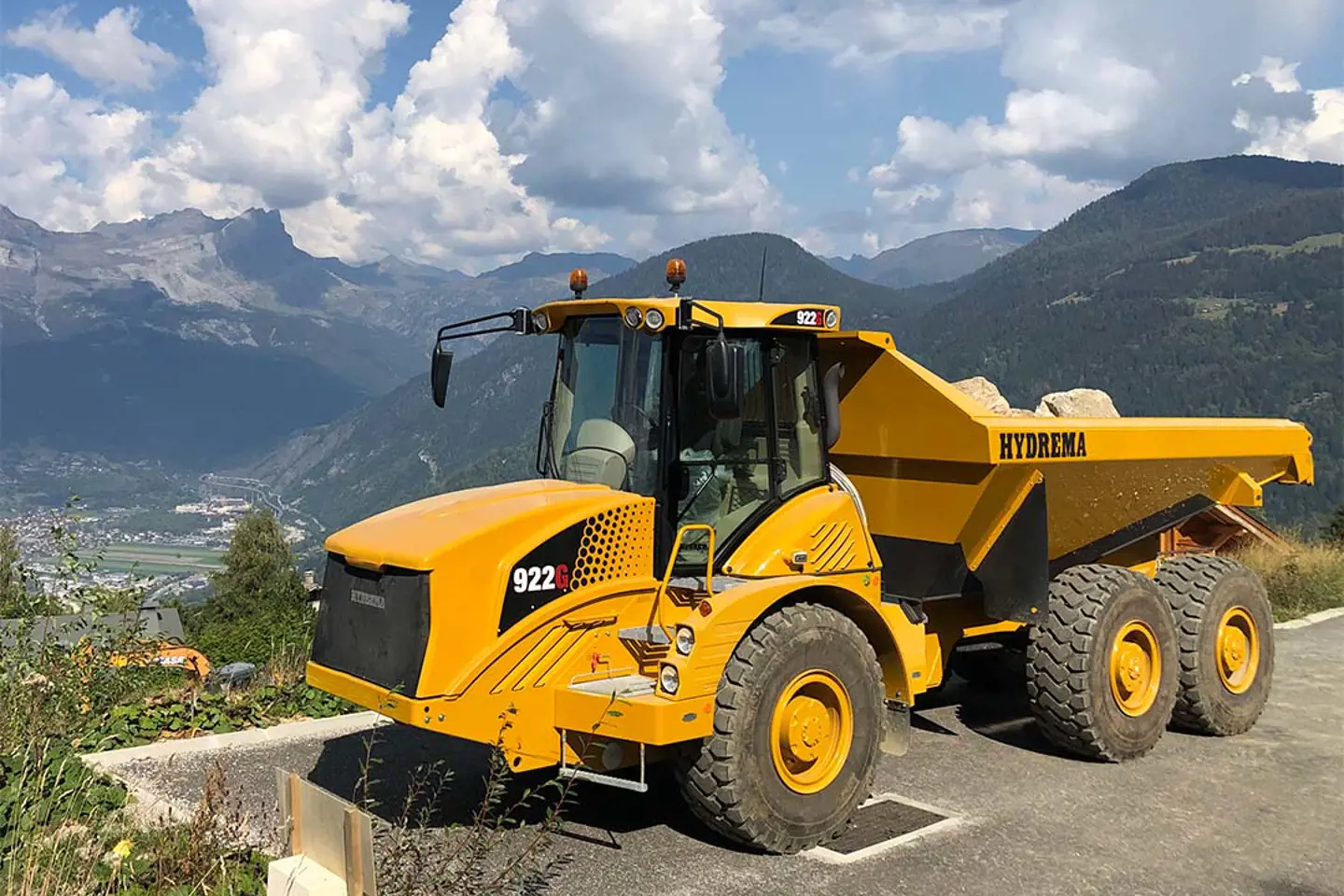

Features 922G 2.55

• 20 tonnes load capacity
• Narrow version of the 922G at under 2.55m
• Cummins B6.7 Stage V with 314 hp
• Three-axle & articulated steering
• Hydraulic stabilisers, bogie axles & high ground clearance
• Excellent visibility from the cab
• Ideal for rental

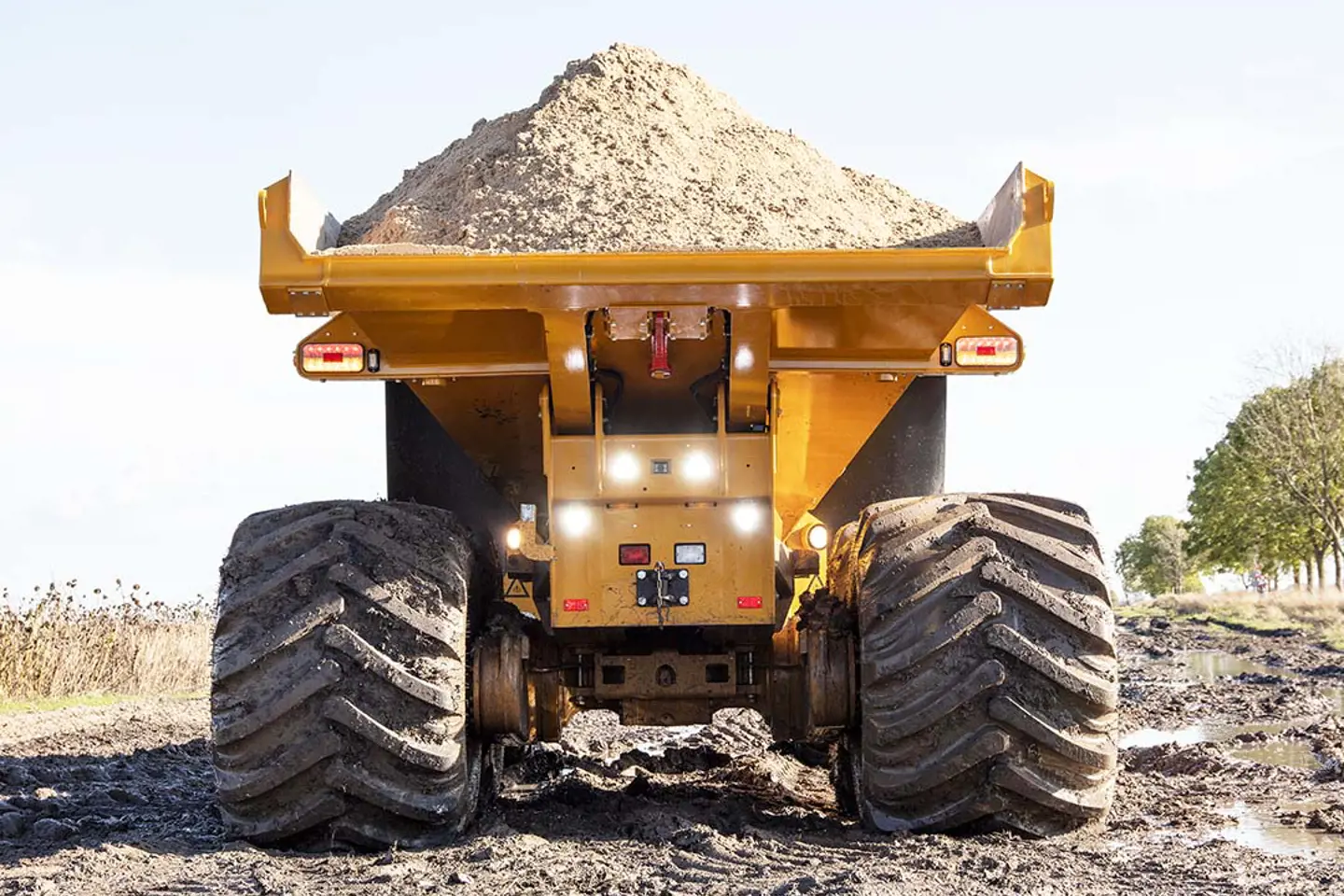

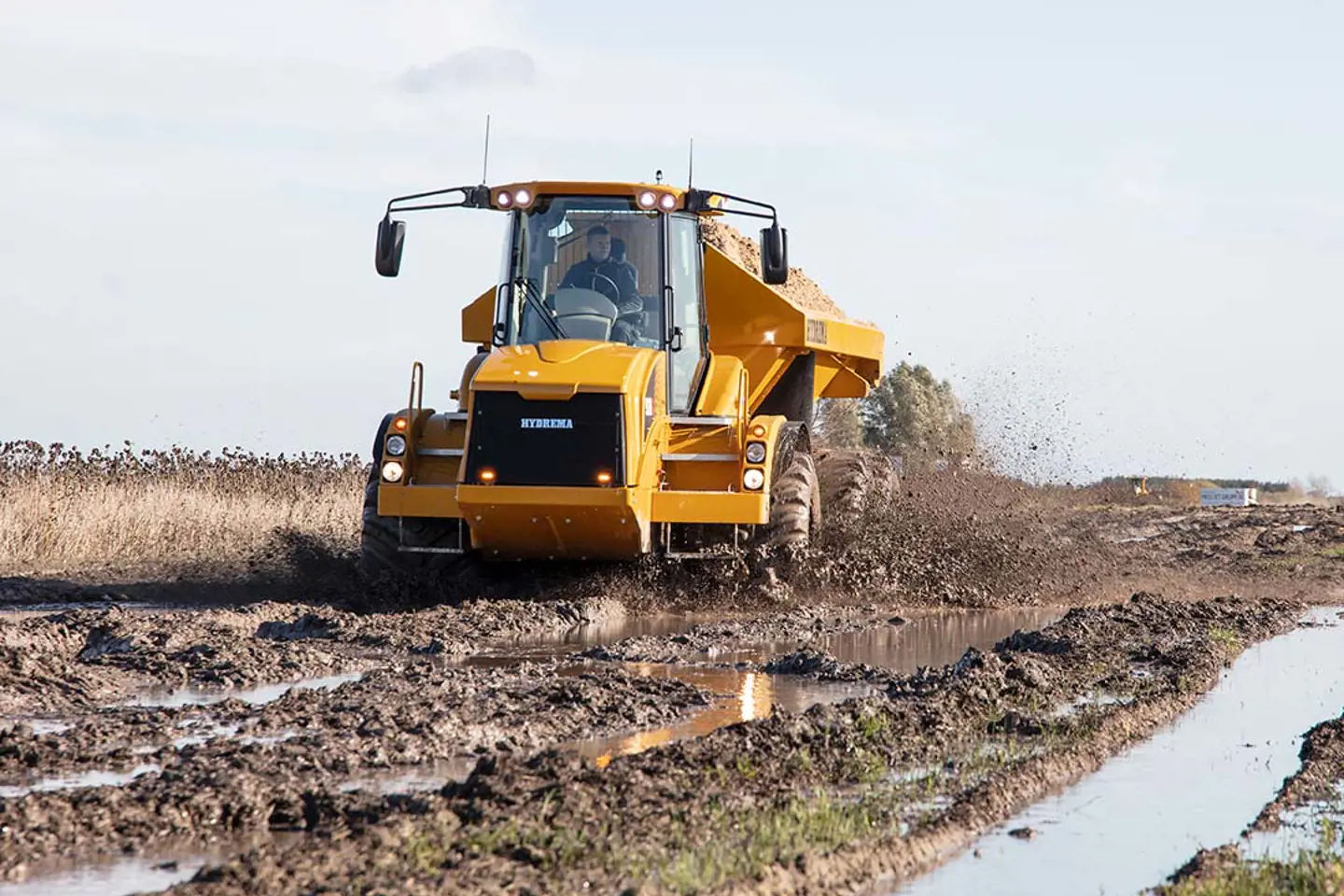

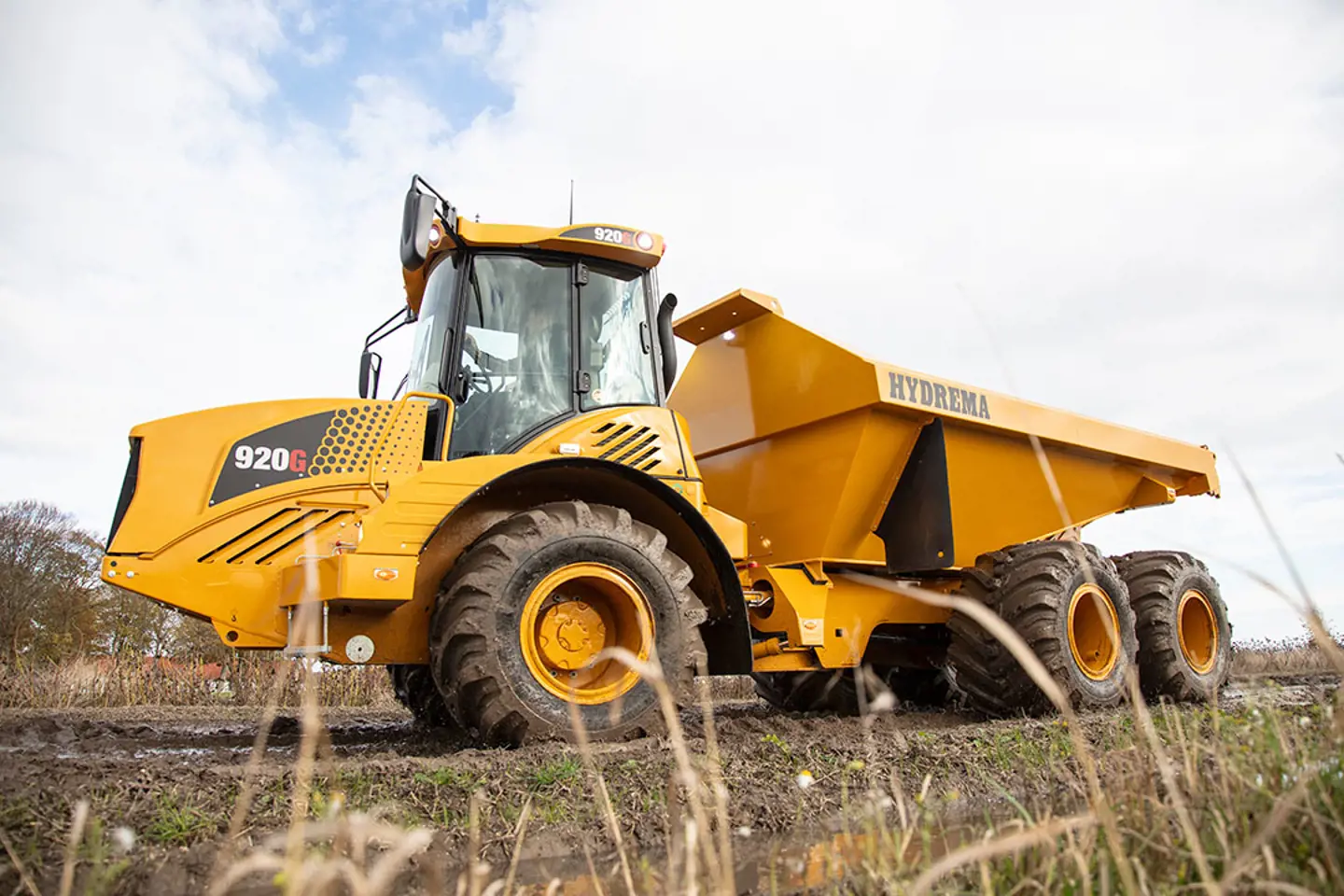

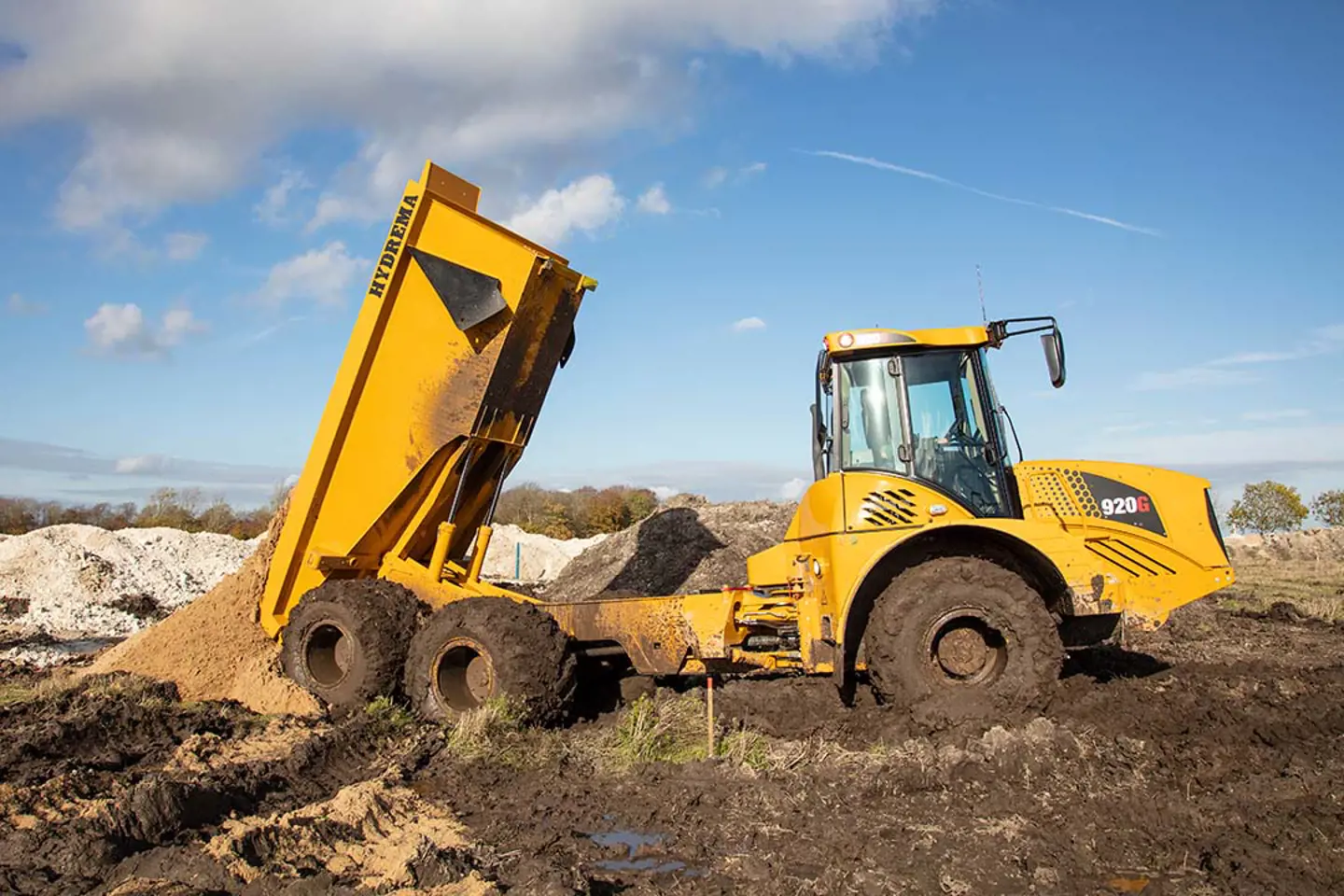

Features 920G

• 18 tonnes load capacity
• Three-axle & articulated
• Cummins B6.7 Stage V with 314 hp
• Hydraulic stabilisers, bogie axles & high ground clearance
• Excellent visibility from the cab
• Low ground pressure

Chassis

Articulated chassis with pendulum bar and double hydraulic stabilizers in the center pi-vot. Gives a high degree of stability both when driving and dumping. Fabricated in high tensile steel in order to obtain the highest possible strength and the lowest possible unladen weight. Fuel tank 300 l. Ad Blue-tank: 31 l. Oscillation: +/- 12°.

Engine

Cummins B6.7 liter 6 cyl. Stage-V engine with DOC, DPF and SCR catalyst with Ad-Blue additive. 24-valve common rail turbo-diesel with intercooler and electronic vari-able turbocharger (used for engine brake). Max. Power: 231 kW/314 HP at 2000 rpm. Max. Torque: 1288 Nm at 1500 rpm.

Transmission

ZF ERGOPOWER 6WG-210 aut. Transmission with 6 forward and 3 reverse gears. The transmission is equipped with 100% lockup in all gears and manual activated differen-tial lock between the front and rear. Auto-matic or manual gearshift. Max speed: Forward: 50 km/h – Reverse: 31 km/h. Max. tractive effort: 223 KN

Dump Truck Body

Body in high tensile Hardox 450 steel with-out side ribs. The double action tipping cyl-inders are located under the body for max-imum protection. Option: exhaust heated body and hydraulic activated tail gate. Tipping time: Up 7,5 sec. / Down 5,5 sec. Tipping angle: 70°.
