Hydrema, recognized for our advanced earthmoving equipment, proudly presents the MXG series of wheeled excavators, a groundbreaking line of machines designed to set new standards in efficiency and performance in the construction industry. These wheel excavators combine Hydremas engineering expertise with the latest technology to offer exceptional maneuverability, powerful performance and optimal operator comfort.

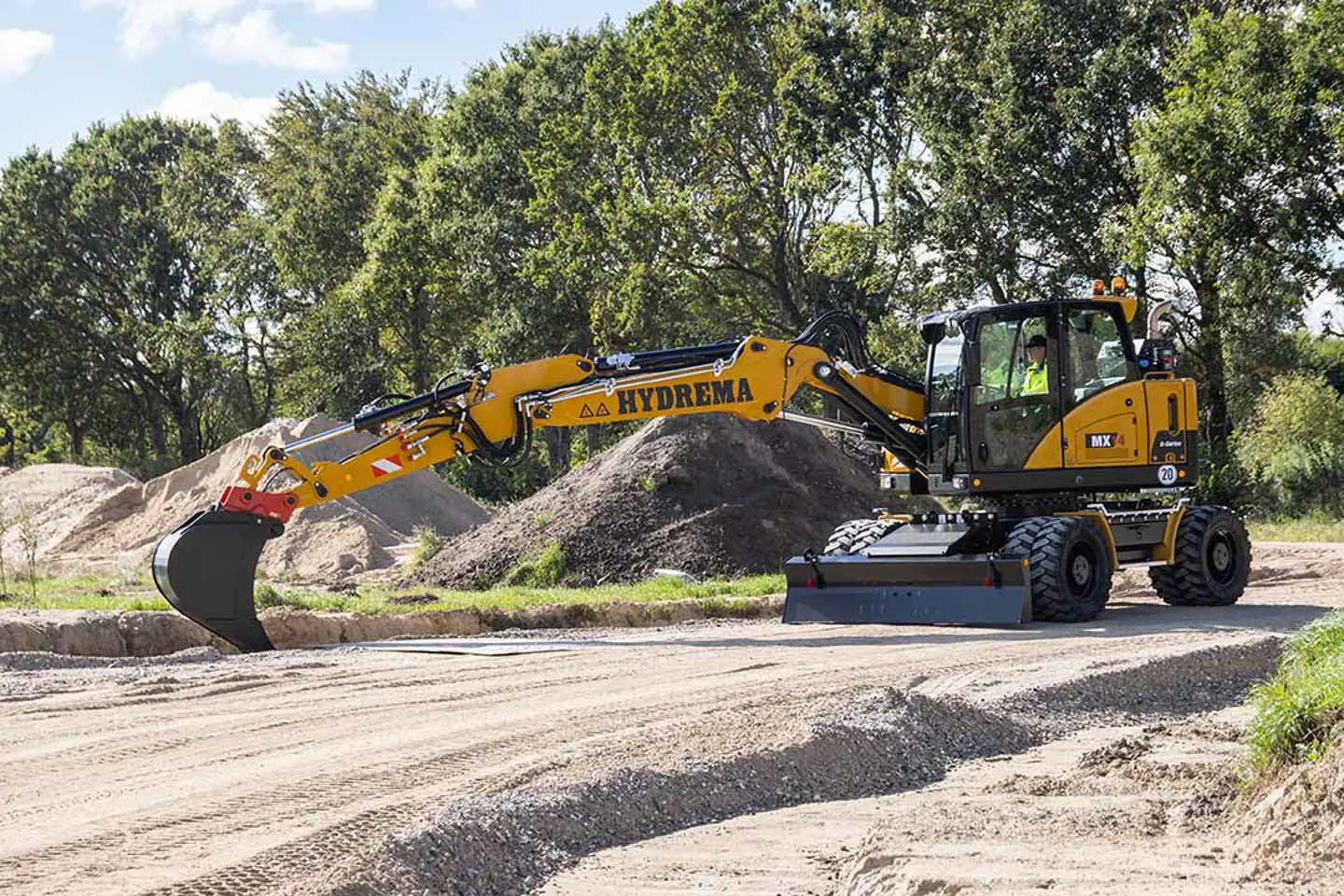

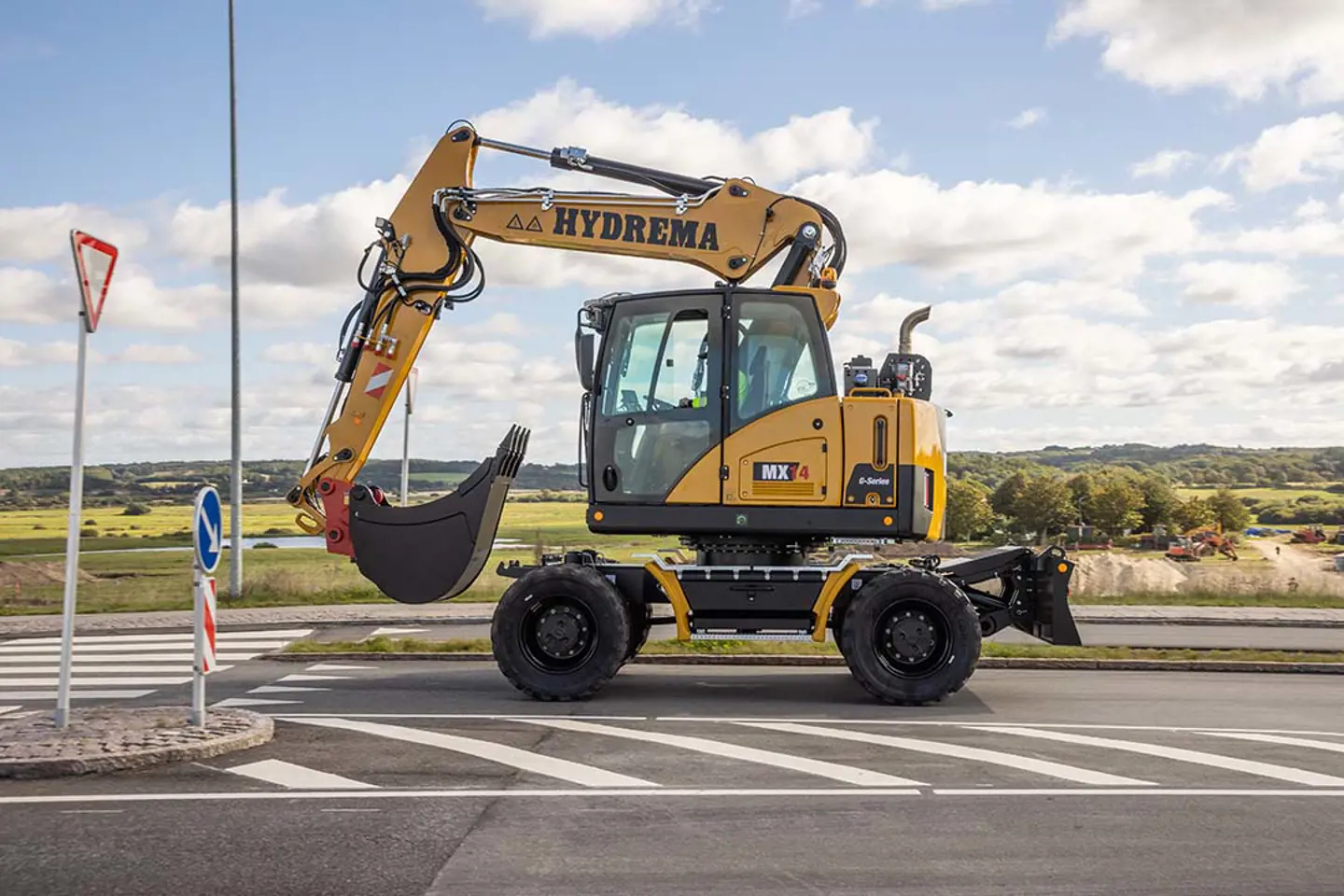

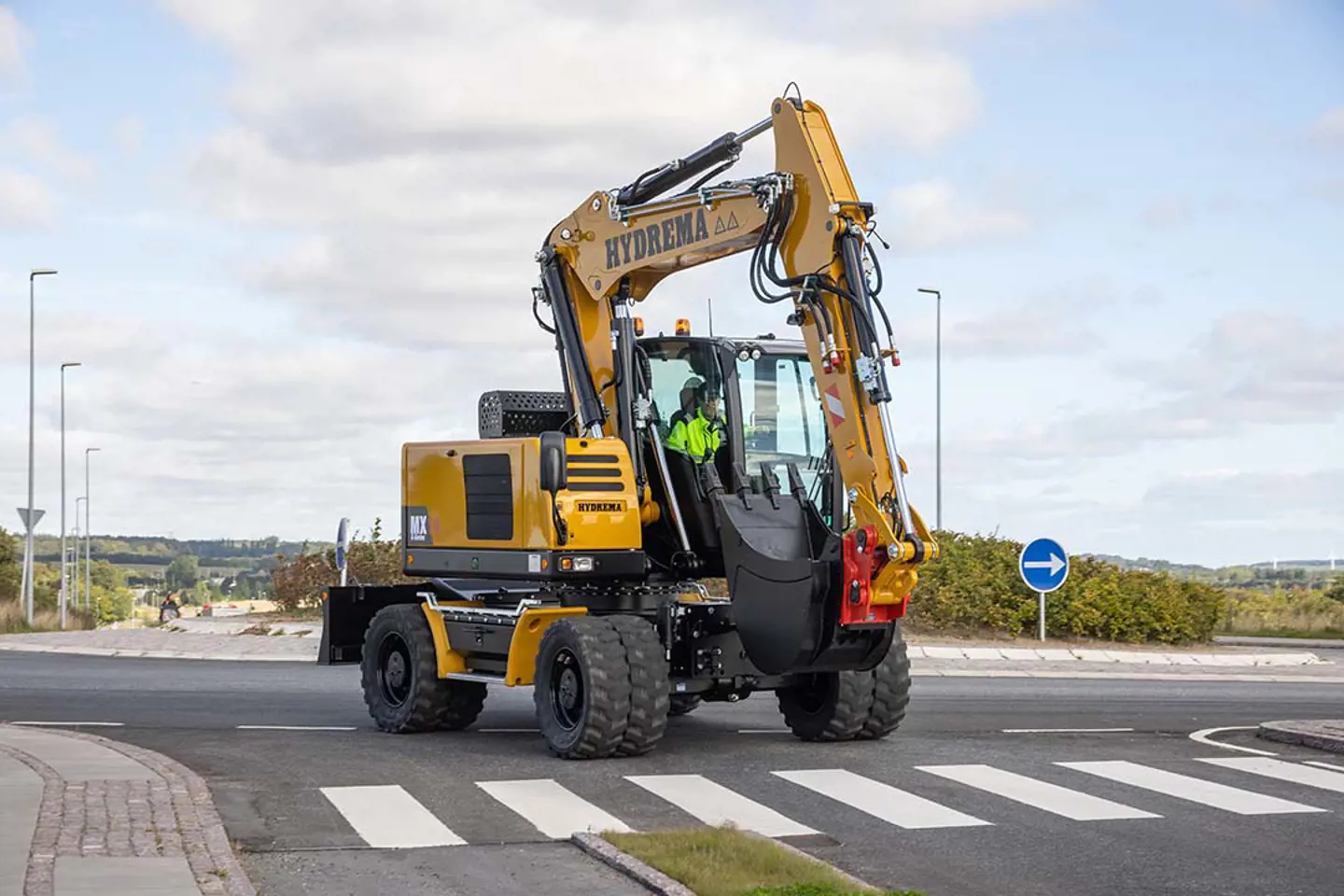

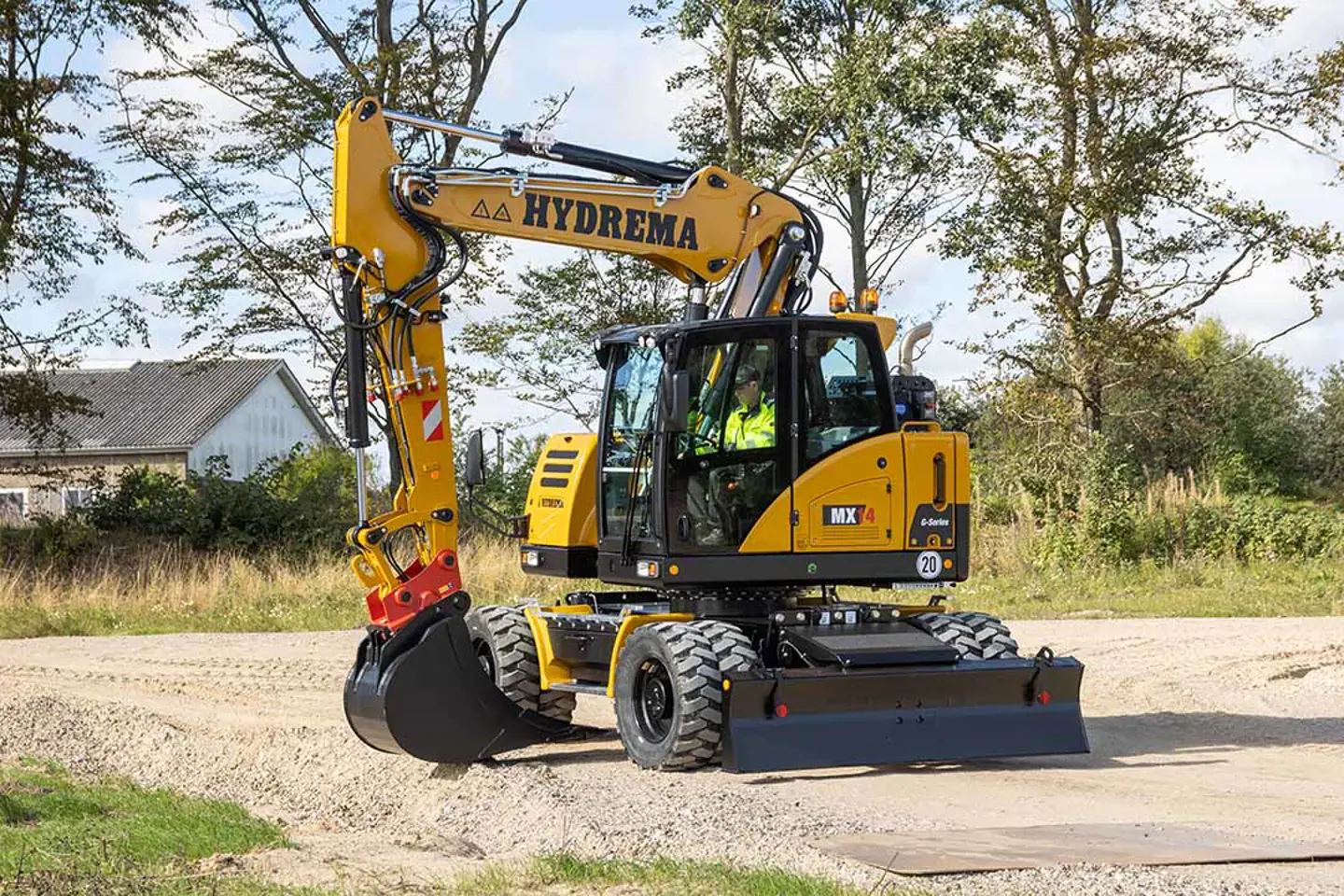

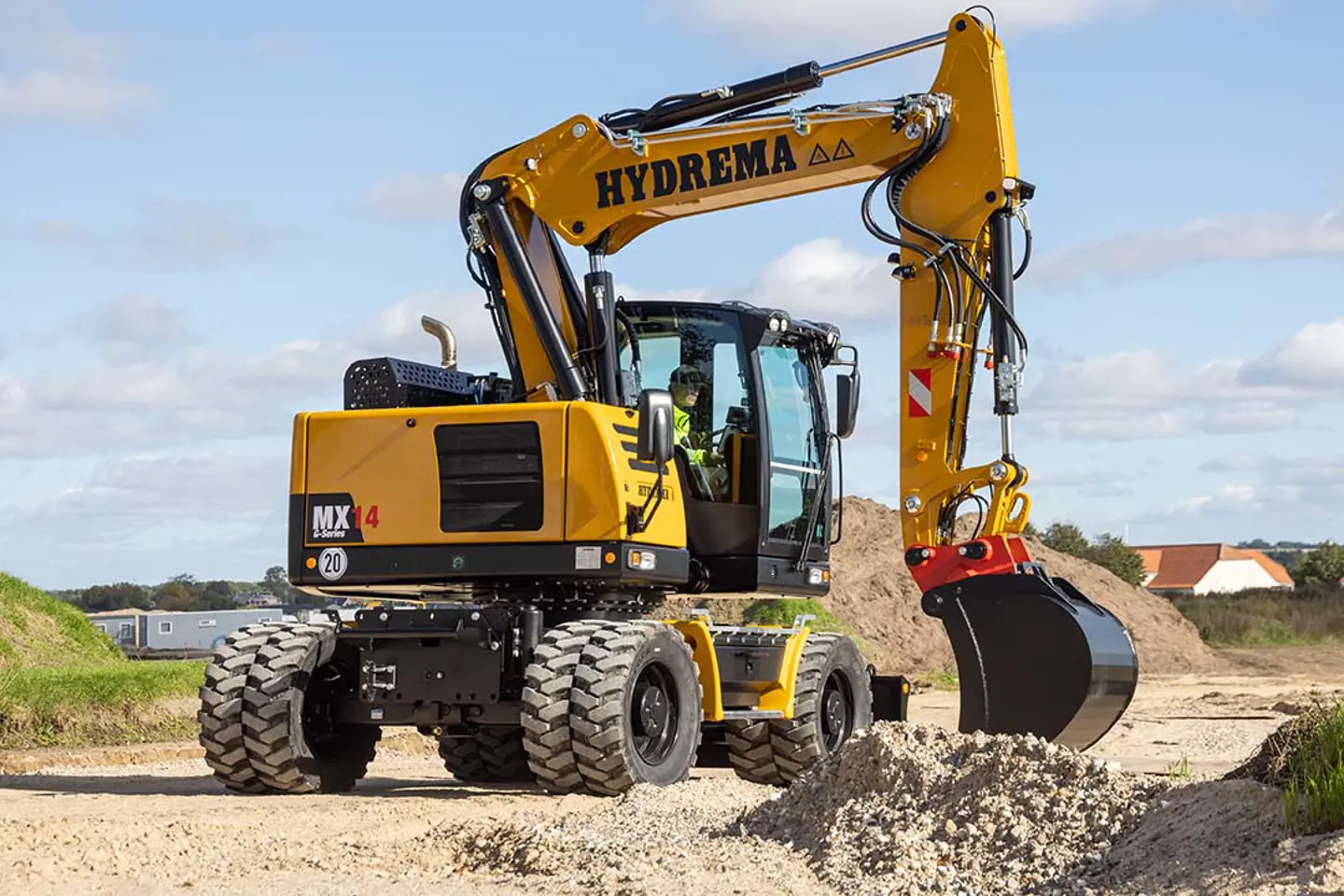

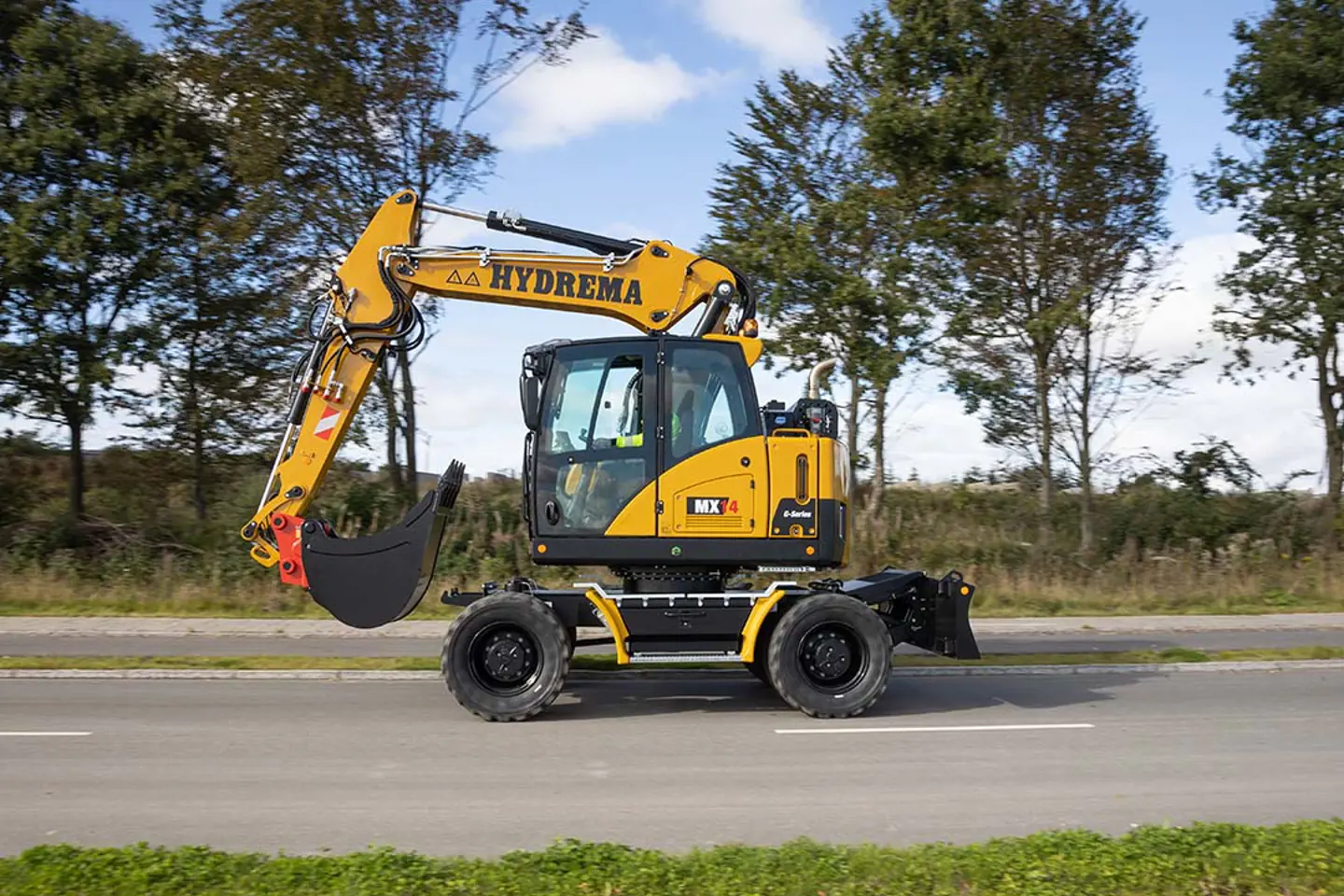

Features MX14G

• Cummins B 4.5 L Stage 5 engine
• Swing radius from 1733 mm
• Extensive breakout force, engine power and digging performance
• Large cab with excellent visibility
• Shortest rear end in its class at only 1550 mm

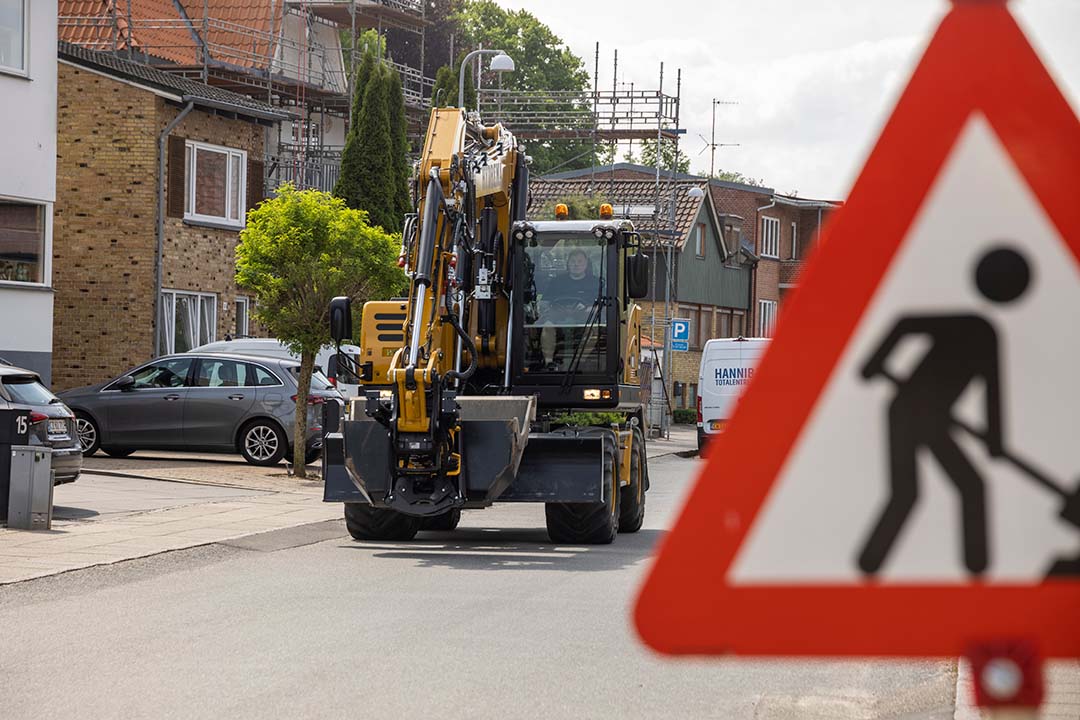

• Easily works in tight spaces, narrow streets or busy roads

Features MX16G

• Cummins B 4.5 L Stage 5 Engine
• Large cab with excellent visibility
• Heavy-duty construction, built to last
• Extensive breakout force, engine power and digging performance
• Easily works in tight spaces, narrow streets or busy roads
• Highly customisable to your needs
• Shortest rear end in its class, from only 1640 mm

Features MX17G

• Cummins B 4.5 L Stage 5 Engine
• Heavy-duty construction, built to last
• Highly customisable to your needs
• Large cab with excellent visibility
• Shortest rear end in its class, from only 1700 mm
• Easily works in tight spaces, narrow streets or busy roads
• Extensive breakout force, engine power and digging performance

Features MX18G

• Cummins B 4.5 L Stage 5 Engine
• Large cab with excellent visibility
• Highly customisable to your needs
• Heavy-duty construction, built to last
• Easily works in tight spaces, narrow streets or busy roads
• Shortest rear end in its class, from only 1700 mm
• Superior breakout force, engine power and digging forces

Features MX20G

• Cummins B 4.5 L Stage 5 Engine
• Heavy-duty construction, built to last
• Extensive breakout force, engine power and excavation performance
• Large cab with excellent visibility
• Highly customisable to your needs
• Shortest rear end in its class, from only 1700 mm
• Unrivalled stability and lifting power

Hydraulic System

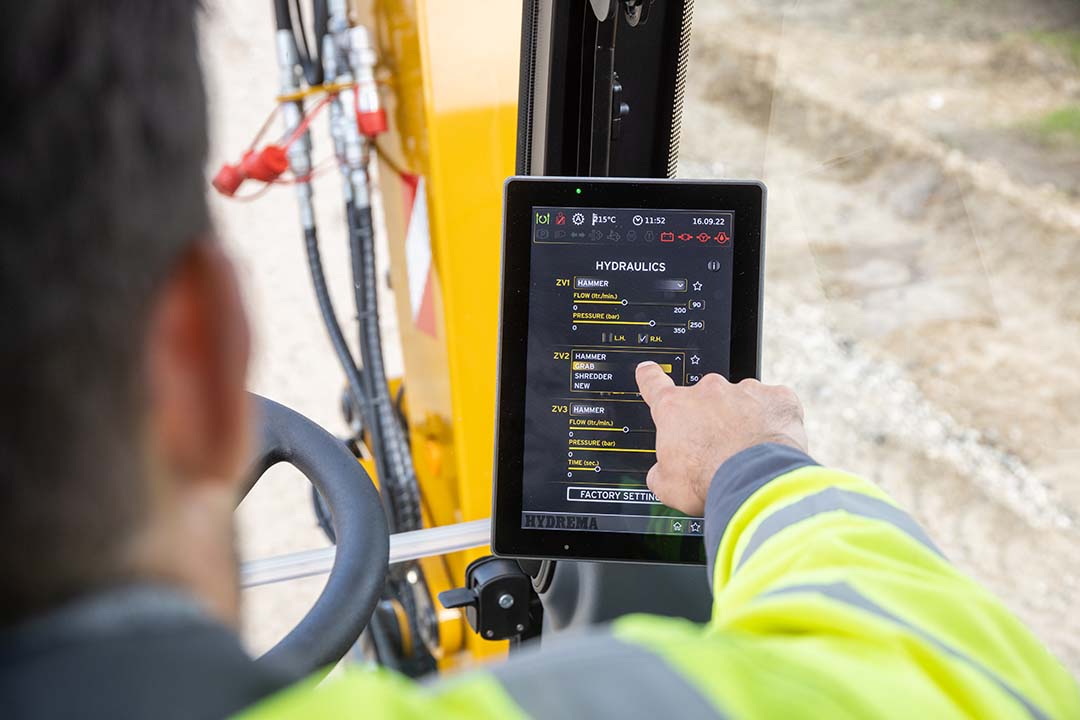

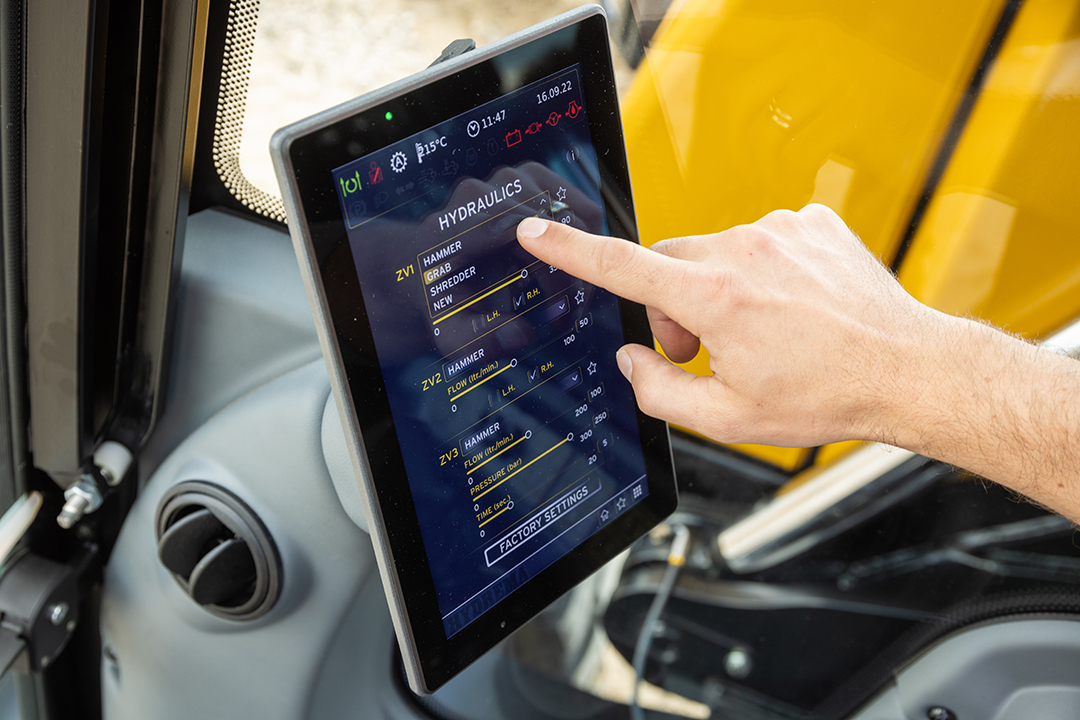

Dual-circuit system with Load Sensing and high pressure hydrostatic slew system with separate pumps. Electronic power control of the pump for working hydraulics. Mode Control for precision work and ECO Mode for fuel economy. Up to 3 hydraulic circuits for implements (2 as stand.), adjustable from the cabin. Circuit 3 with priority of oil flow. Adjustable pressure and oil quantity for up to 10 tools.

OIL QUANTITIES:
Working hydraulics: 319 l/Min
Slew hydraulics: 88 l/Min
Hydraulic circuit 1, ZV1: 30-200 l/Min
Hydraulic circuit 2, ZV2: 15-100 l/Min
Hydraulic circuit 3, ZV3: 50-200 l/Min

Engine

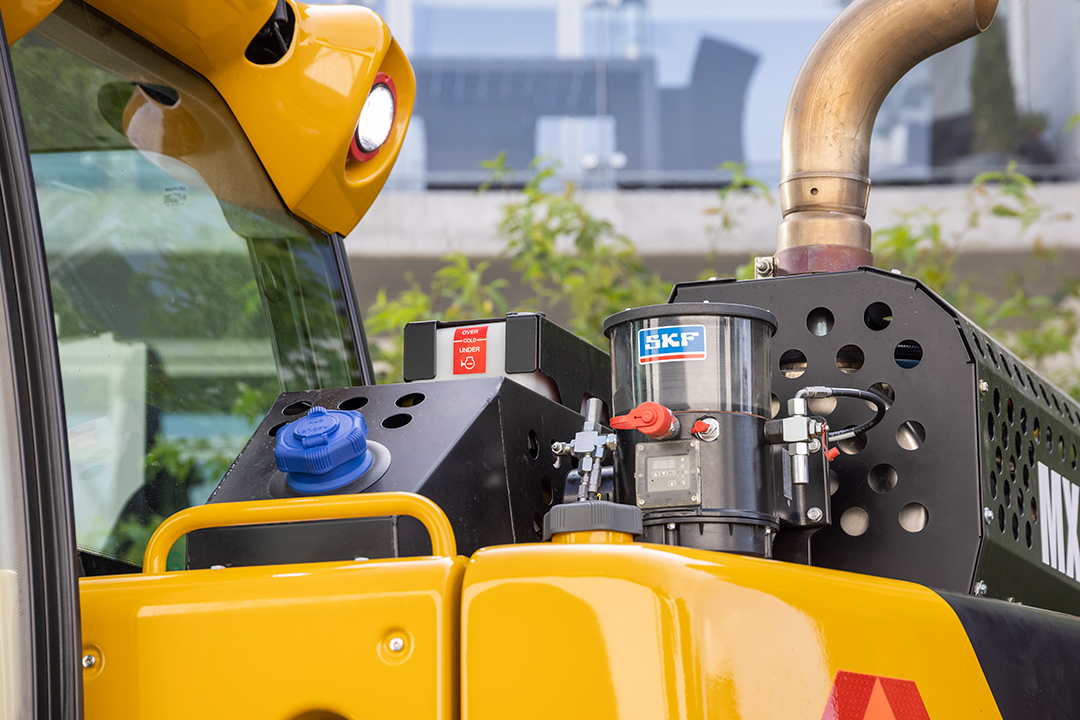

Cummins B 4.5L Stage V engine with DOC, DPF and SCR catalytist with AdBlue additive. 16-valve Common-Rail Turbo-diesel with intercooler. Max. 175 hp (129 kW) at 2200 rpm. Max. torque: 780 Nm at 1500 rpm. 165 hp (121 kW) is achieved already at 1500 rpm. Fuel tank 280 L. Ad Blue tank: 31.5 L.

Driving Hydraulics

Constant 4 wheel hydrostatic drive. Electrically controled drive motor and retarder. 2-speed soft shift powershift transmission for road and off-road gear.

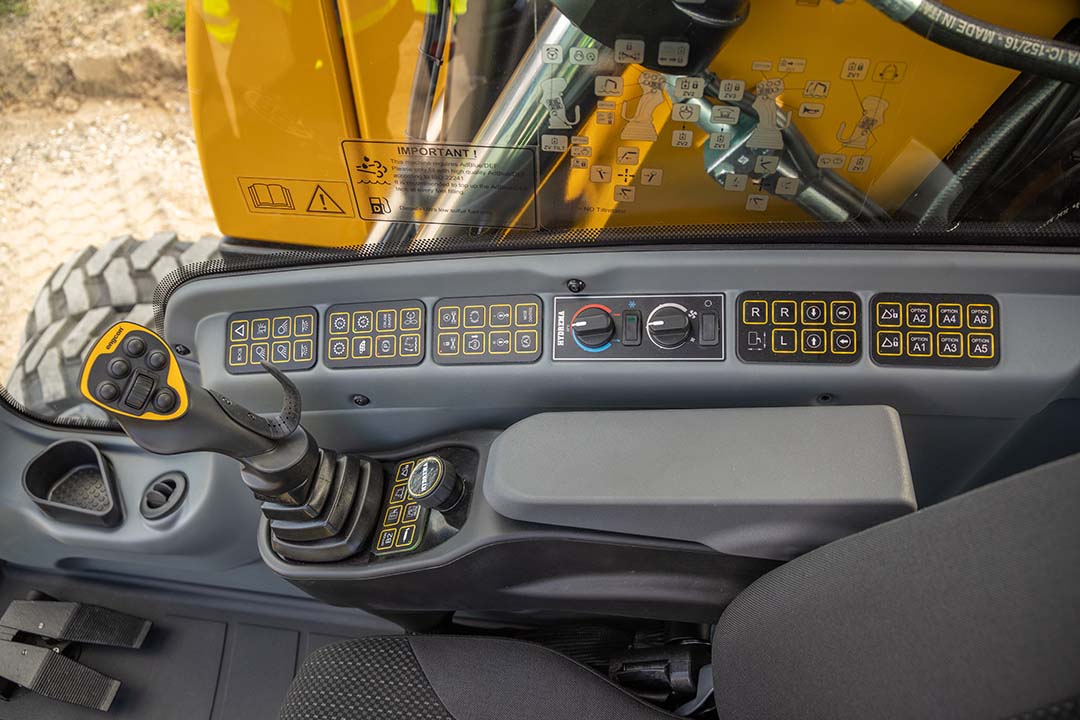

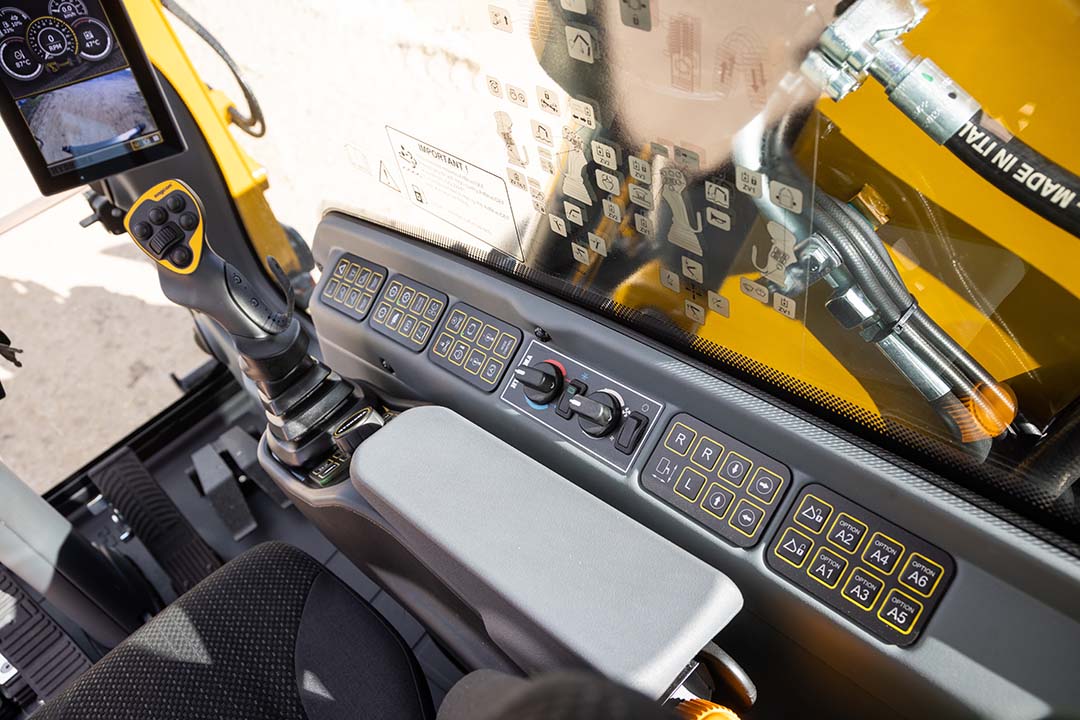

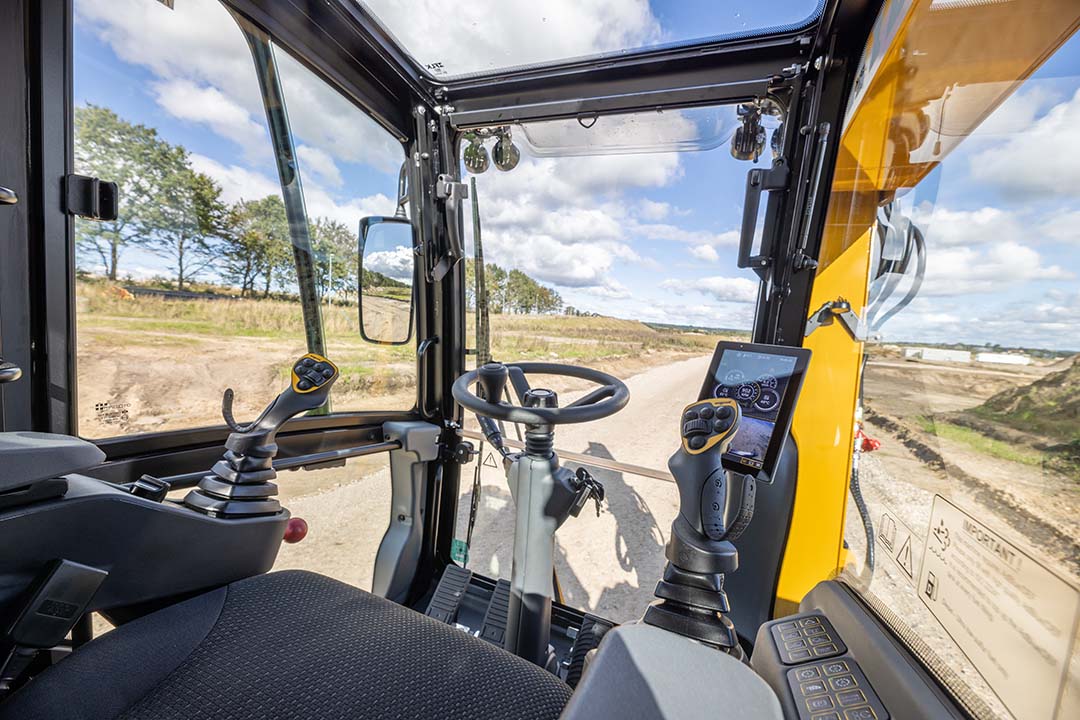

Cab

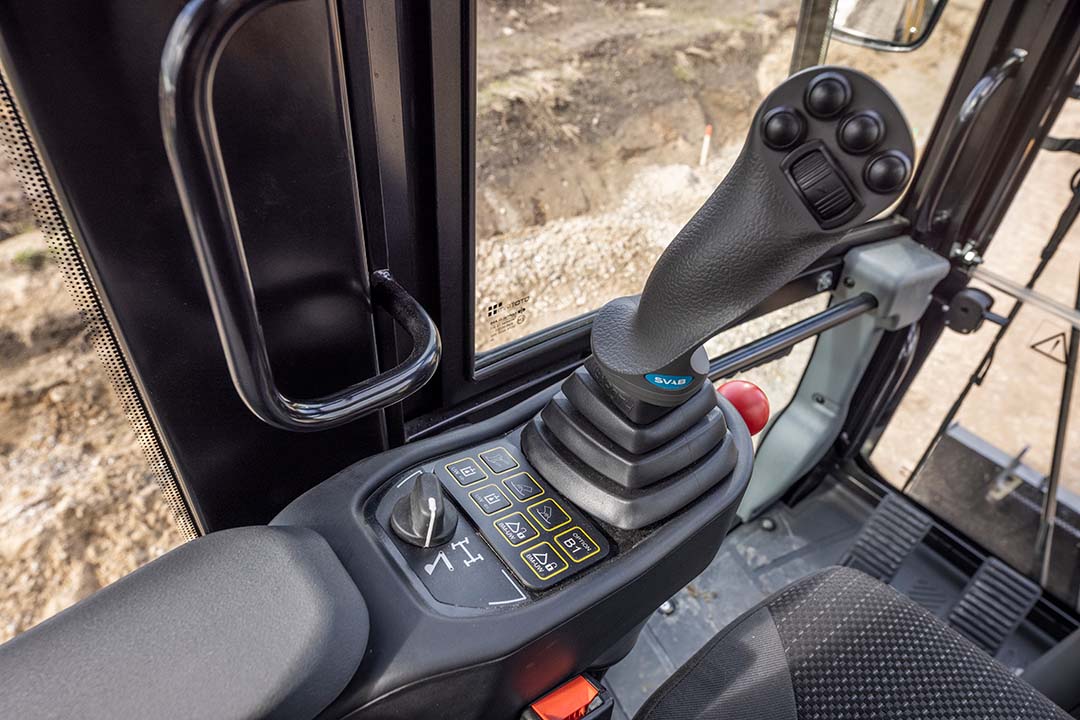

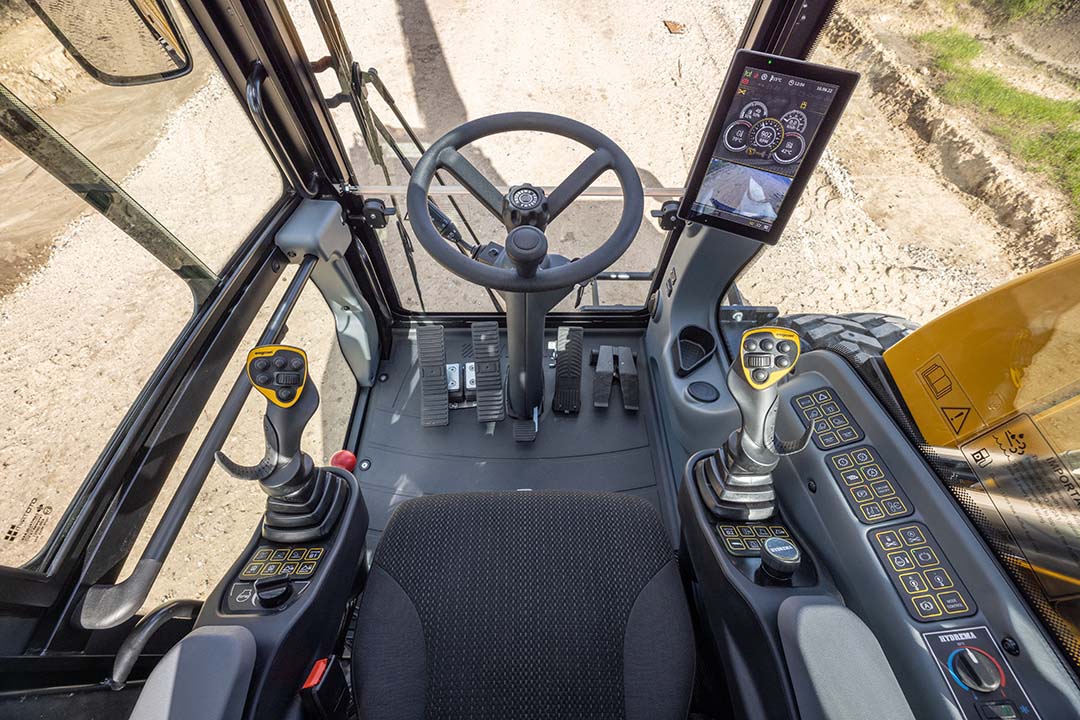

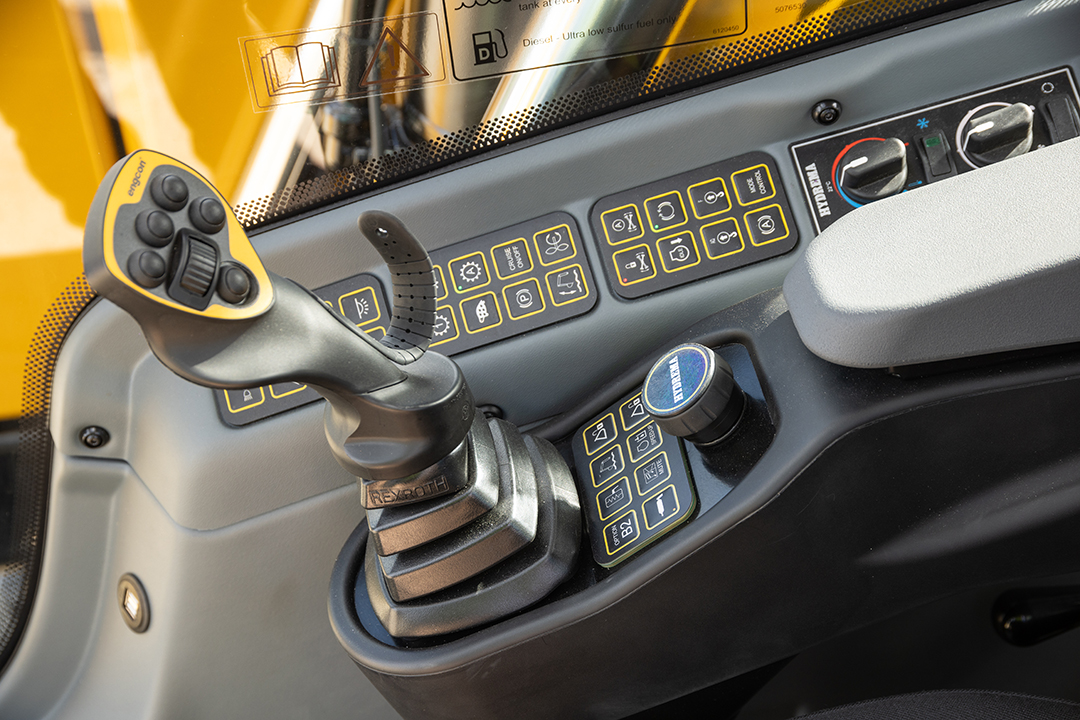

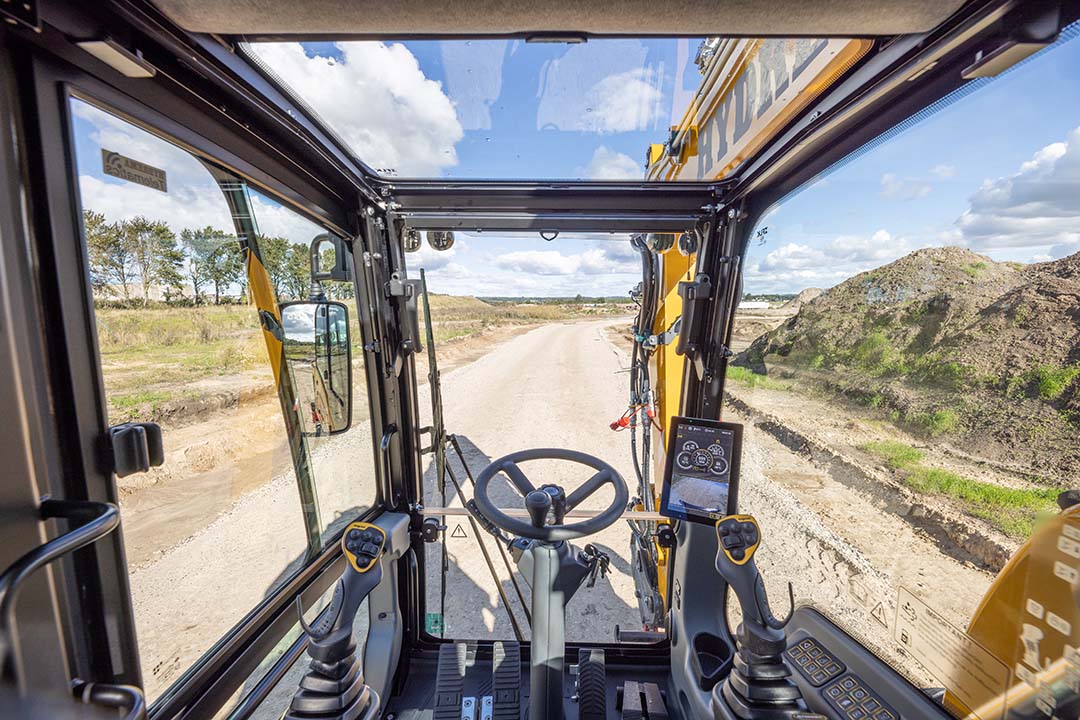

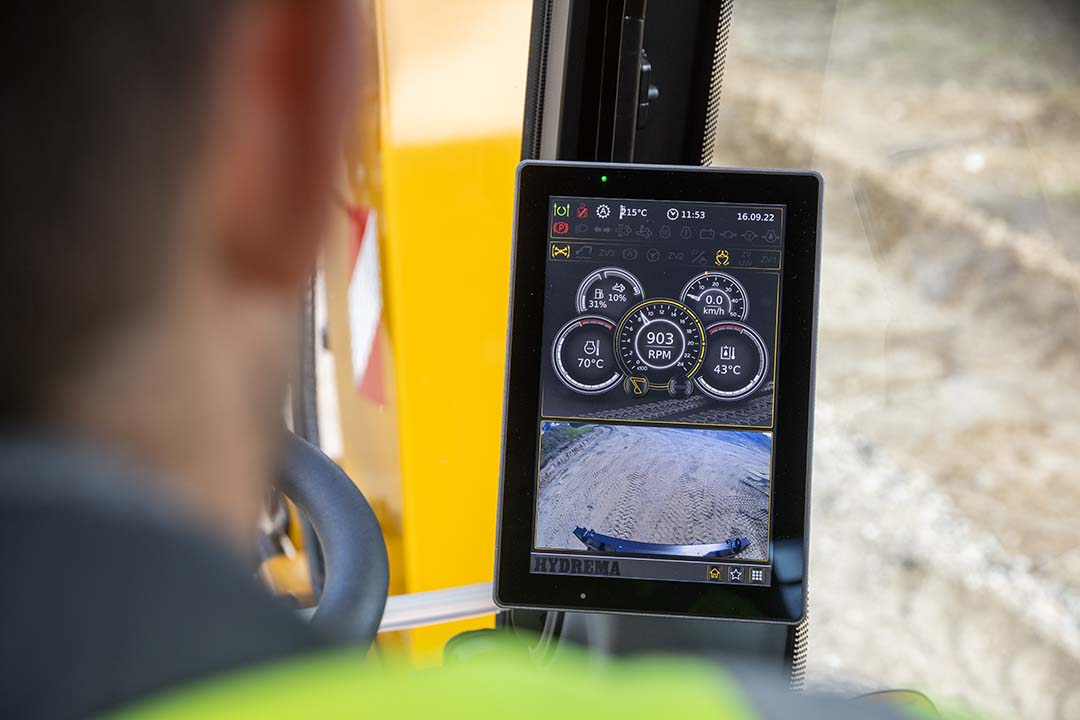

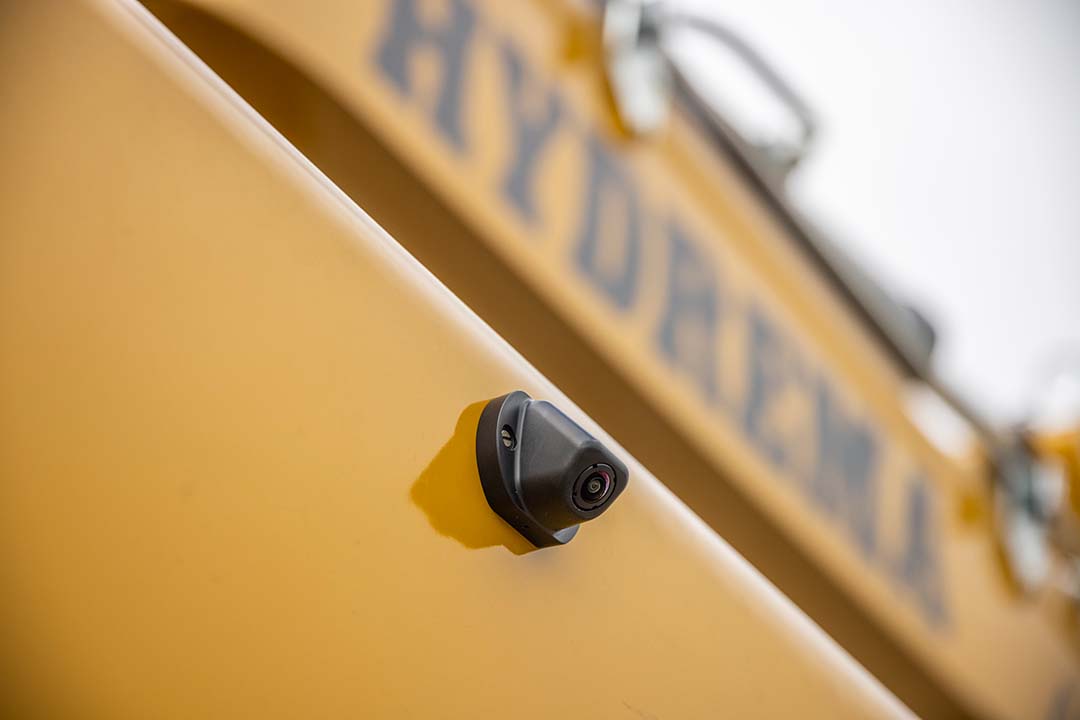

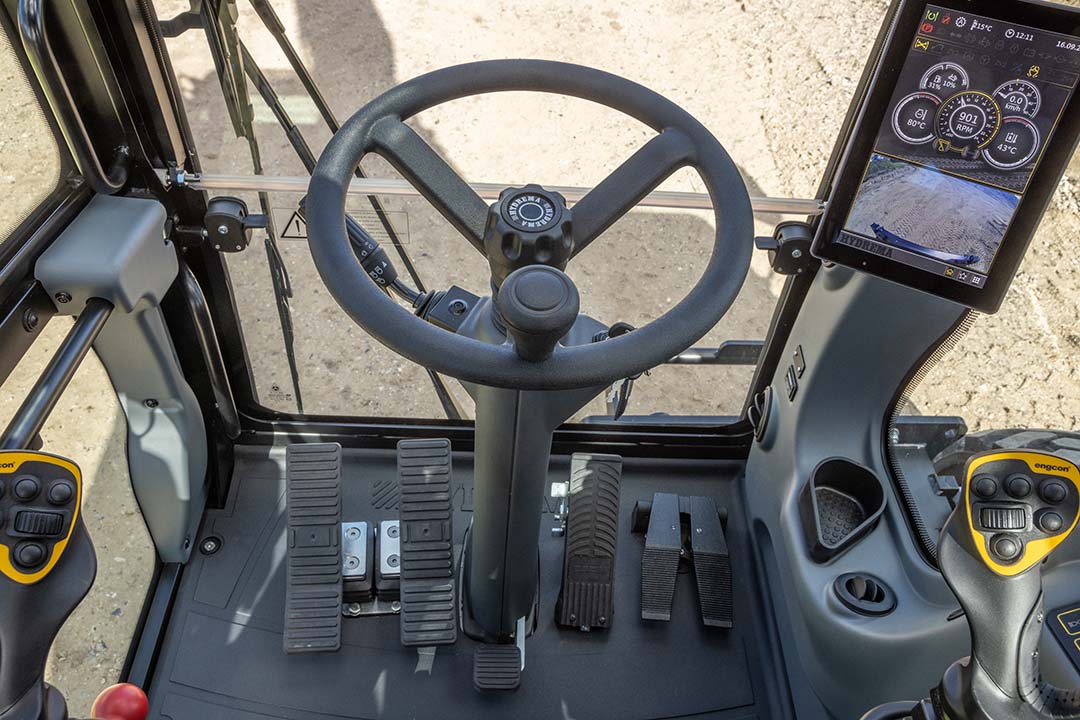

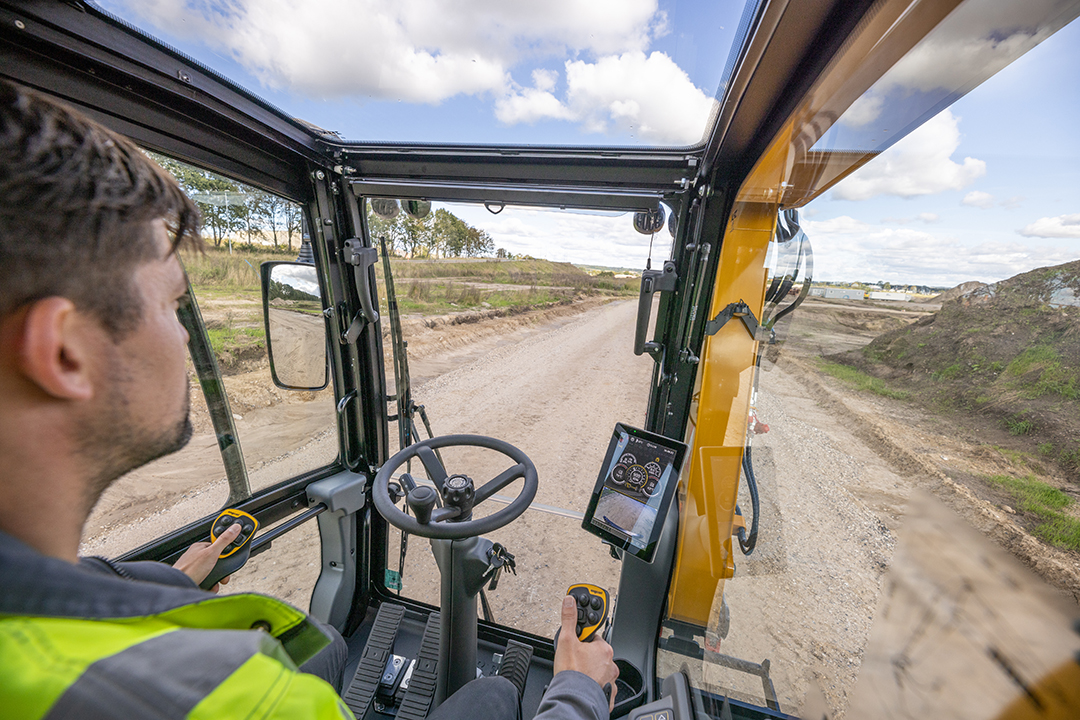

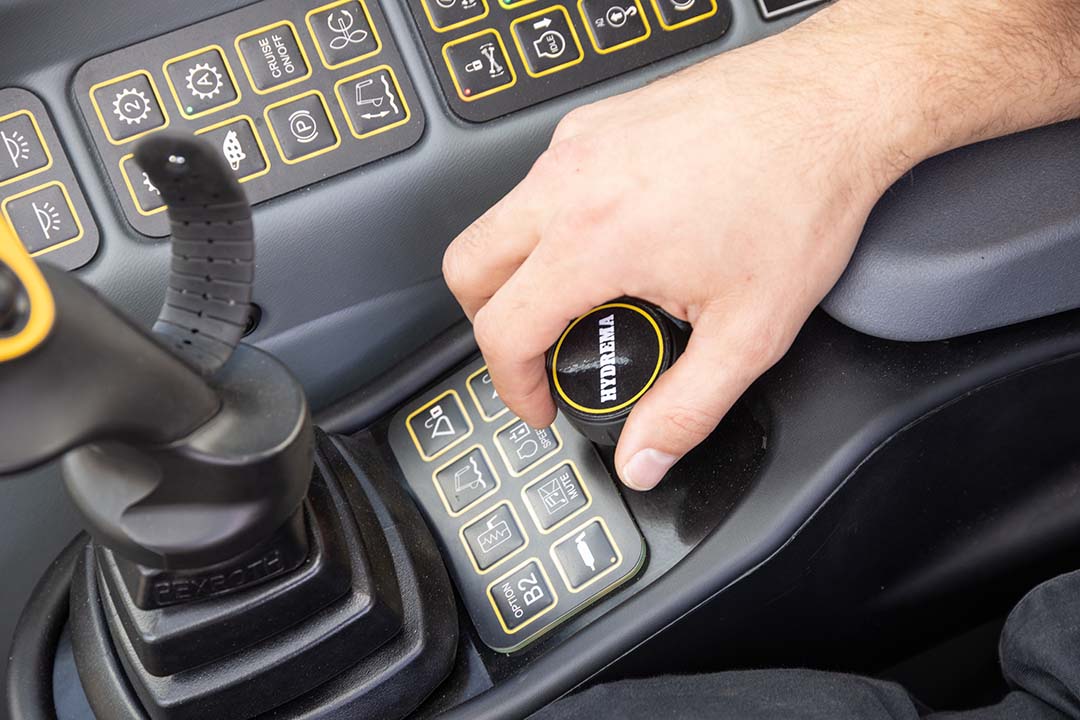

Spacious ROPS cab with sliding window in the door, 2-part front window with sliding top and removable bottom, skylight. Adjustable steering column and arm-rests. Air conditioning with 7 adjustable air nozzles. Air suspended seat. Large 10’’ display, simple to operate via touch or the display controller in the armrest. Rear view camera integrated into the display. Large rear view mirrors with electronic adjustment. Storage space under and behind the seat. Automatic entry and exit light.
